Fiber Pigtails

Name: Fiber Pigtails
Brand: One Optics
SKU: PT-R-LC-12-3M

PT- · 900 µm loose tube · ribbon · LC · SC · UPC / APC · 3 m · Corning SMF-28 Ultra

The same factory-terminated pigtails we build our enclosures with, offered on their own for your panels and repairs. Choose 900 µm loose tube pigtails for single fusion or ribbon pigtails for mass fusion.

3 mLength

18 inColor-coded fan-out

0.20 dBIL max per connector

Build your part numberPT-[L/R]-[connector]-[count]-[length]

Type

Connector

Length

Quote This Part

PDF Get the Datasheet Request a Quote

Overview

Corning SMF-28 Ultra Pigtails, Built to Enclosure Standards

Every pigtail is color coded to TIA-598 and 100% tested for end-face cleanliness and geometry before it ships.

1 Blue2 Orange3 Green4 Brown5 Slate6 White7 Red8 Black9 Yellow10 Violet11 Rose12 Aqua

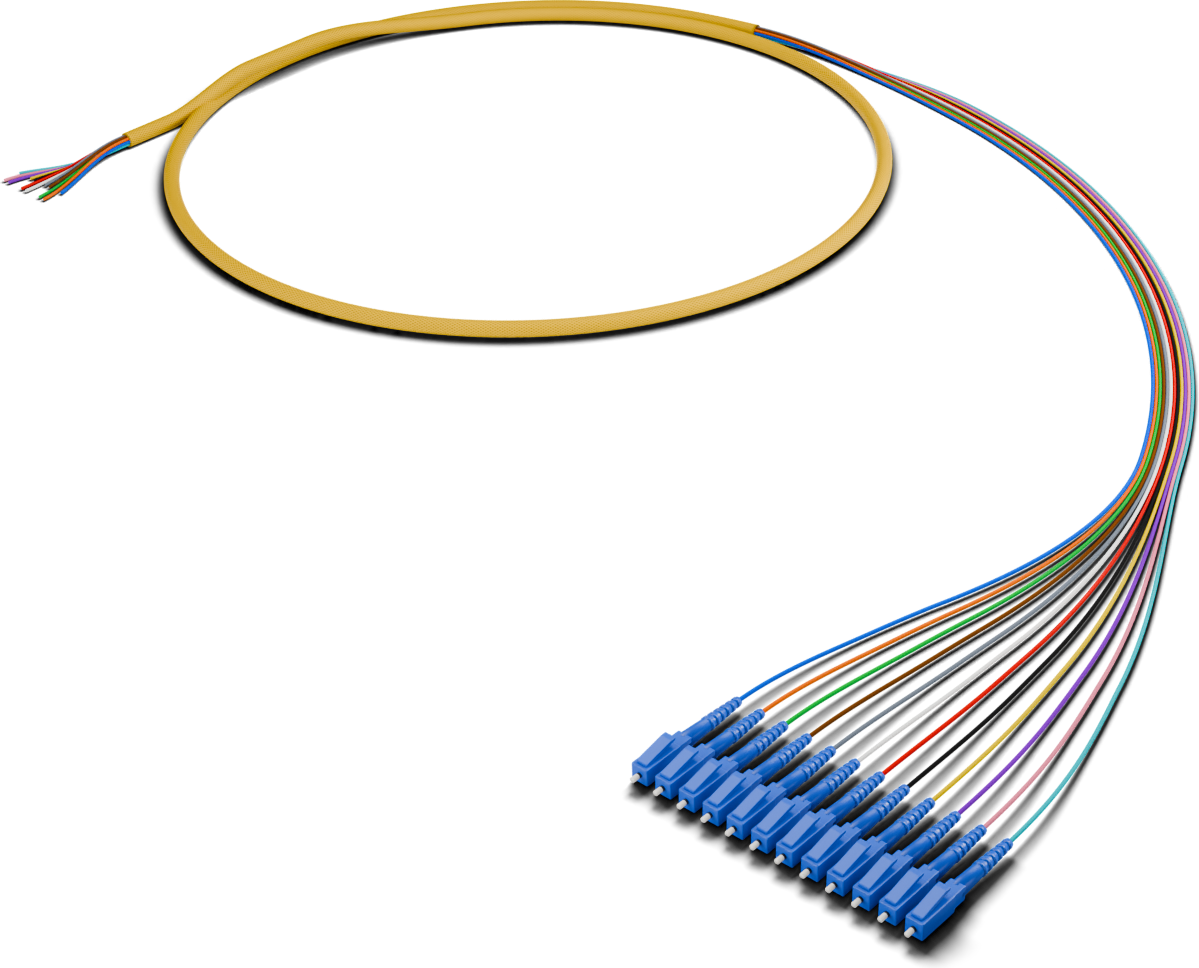

900 µm loose tube pigtails for single fusion, in a yellow mesh sleeve after the first 18 in
Ribbon pigtails for mass fusion; black mesh sleeve on request
LC or SC, UPC or APC
3 m [9.8 ft] length; 18 in [457 mm] color-coded 900 µm at the connector end
Corning SMF-28 Ultra singlemode fiber (G.652.D and G.657.A1 compliant, bend-insensitive); multimode on request
Low loss: 0.20 dB max IL; RL 55 dB min UPC, 65 dB min APC
Applications: splice enclosures, panels, repairs

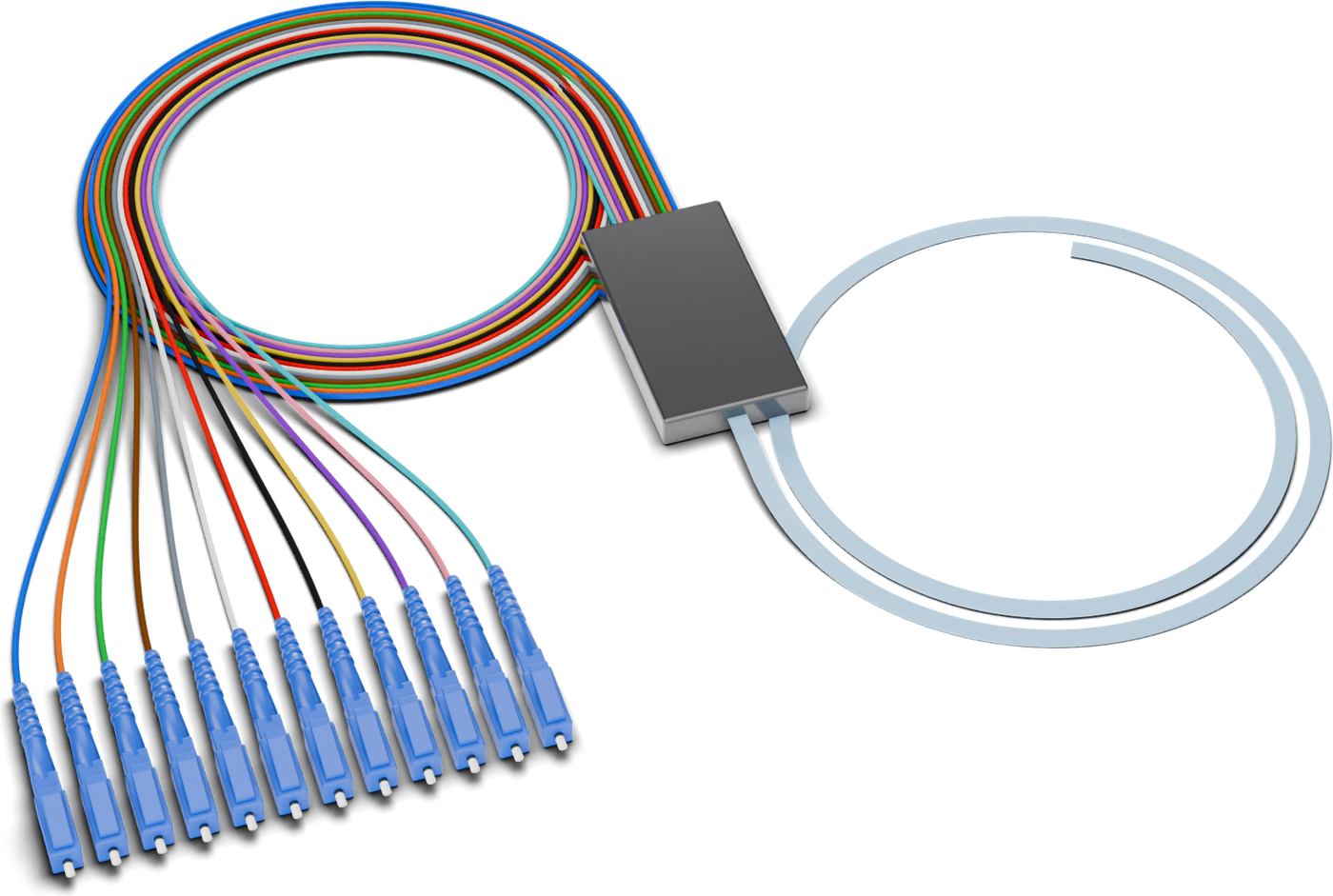

Ribbon pigtail.

Specifications

Splice Method	Loose tube: single fusion · Ribbon: mass fusion
Fibers per Pigtail	12, TIA-598 color code
Fan-Out at Connector	18 in [457 mm] color-coded 900 µm
Protective Sleeve	Loose tube: yellow braided mesh after the first 18 in; ribbon: none (clear ribbon), black mesh on request
Length	3 m [9.8 ft]
Connectors	LC/UPC, LC/APC, SC/UPC, SC/APC
Fiber	Corning SMF-28 Ultra singlemode fiber (G.652.D and G.657.A1 compliant, bend-insensitive); multimode on request
Loss per Connector	IL 0.20 dB max (0.15 dB typical); RL 55 dB min UPC, 65 dB min APC
Testing	100% end-face cleanliness and end-face geometry
Documentation	Test data and certificate of conformance available on request.

The same pigtails come pre-installed in HD1U, HD3U, WMHD2X and WMHD6X builds.

Ordering

Standard Part Numbers

Part Number	Description
`PT-L-LC-12-3M`	900 µm loose tube pigtails, 12 fibers, LC/UPC, 3 m	Quote
`PT-L-LA-12-3M`	900 µm loose tube pigtails, 12 fibers, LC/APC, 3 m	Quote
`PT-L-SC-12-3M`	900 µm loose tube pigtails, 12 fibers, SC/UPC, 3 m	Quote
`PT-L-SA-12-3M`	900 µm loose tube pigtails, 12 fibers, SC/APC, 3 m	Quote
`PT-R-LC-12-3M`	Ribbon pigtails, 12 fibers, LC/UPC, 3 m	Quote
`PT-R-LA-12-3M`	Ribbon pigtails, 12 fibers, LC/APC, 3 m	Quote
`PT-R-SC-12-3M`	Ribbon pigtails, 12 fibers, SC/UPC, 3 m	Quote
`PT-R-SA-12-3M`	Ribbon pigtails, 12 fibers, SC/APC, 3 m	Quote

Part number format: PT-[L/R]-[LC/LA/SC/SA]-[count]-[length]. L = 900 µm loose tube, R = ribbon. Singlemode is standard; multimode available on request.
