Modular rack and wall mount enclosures that share one HD module footprint, a 6,912-fiber entrance cabinet, and the cassettes, MPO trunks, jumpers and copper that connect them.
HD adaptor plates and MPO pass-through cassettes fit the HD1U, HD3U, HD Slim, WMHD2X and WMHD6X; OOFC splice cassettes fit the HD1U, the HD3U family and HD Slim, and the OOFC-24 also fits the wall mounts. One spares kit covers every site.
Enclosures ship loaded with color-coded pigtails, every end face 100% tested, routed and secured in black metallic splice trays.
HD1U, HD3U, HD3US, WMHD2X and WMHD6X steel enclosures and the aluminum Fiber Entrance Cabinet are built in the USA, powder coated, IEC and TIA/EIA compliant, RoHS and REACH.
Every product has a datasheet, a specification table and standard part numbers.

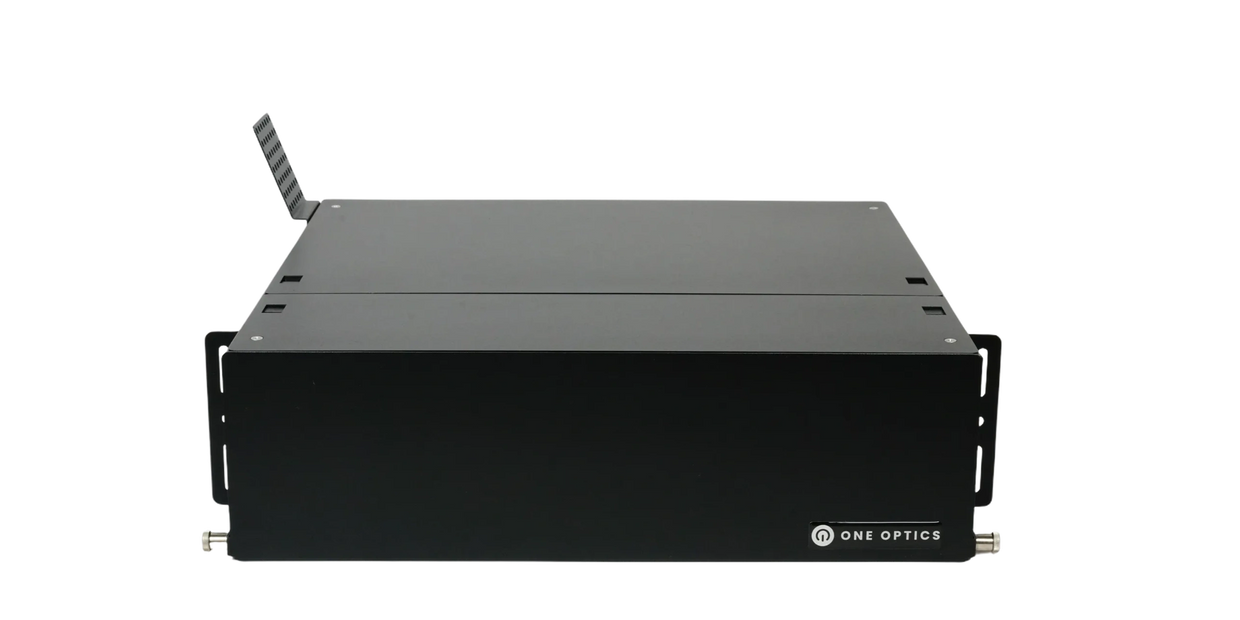

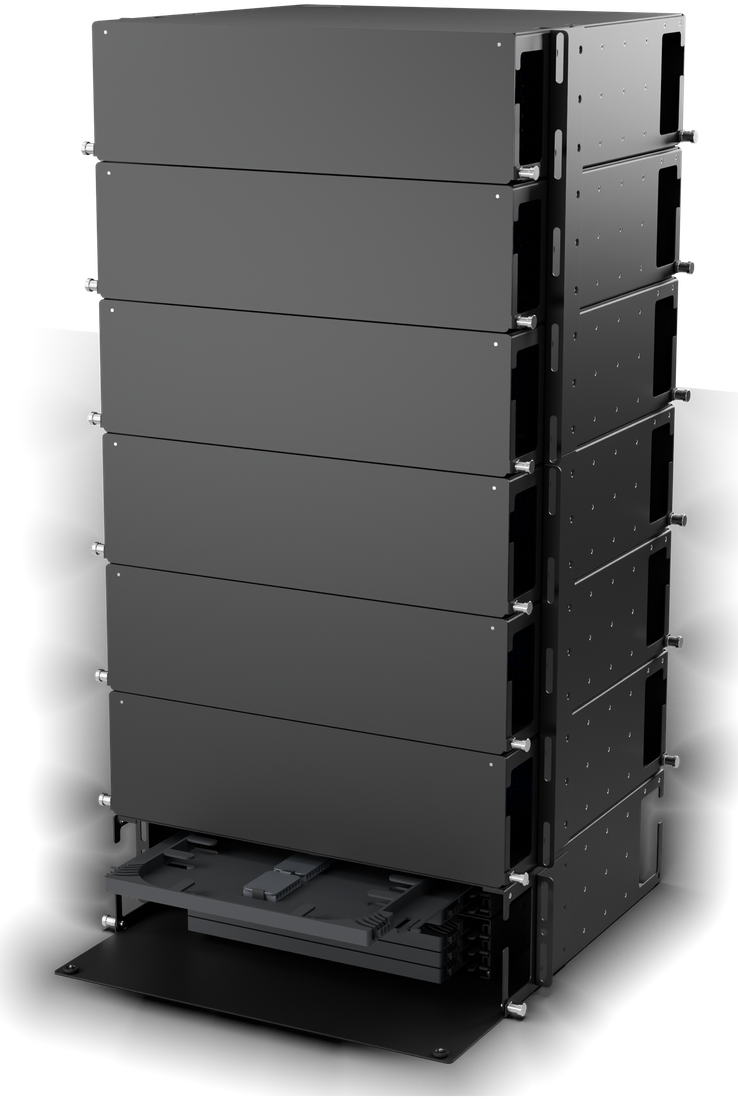

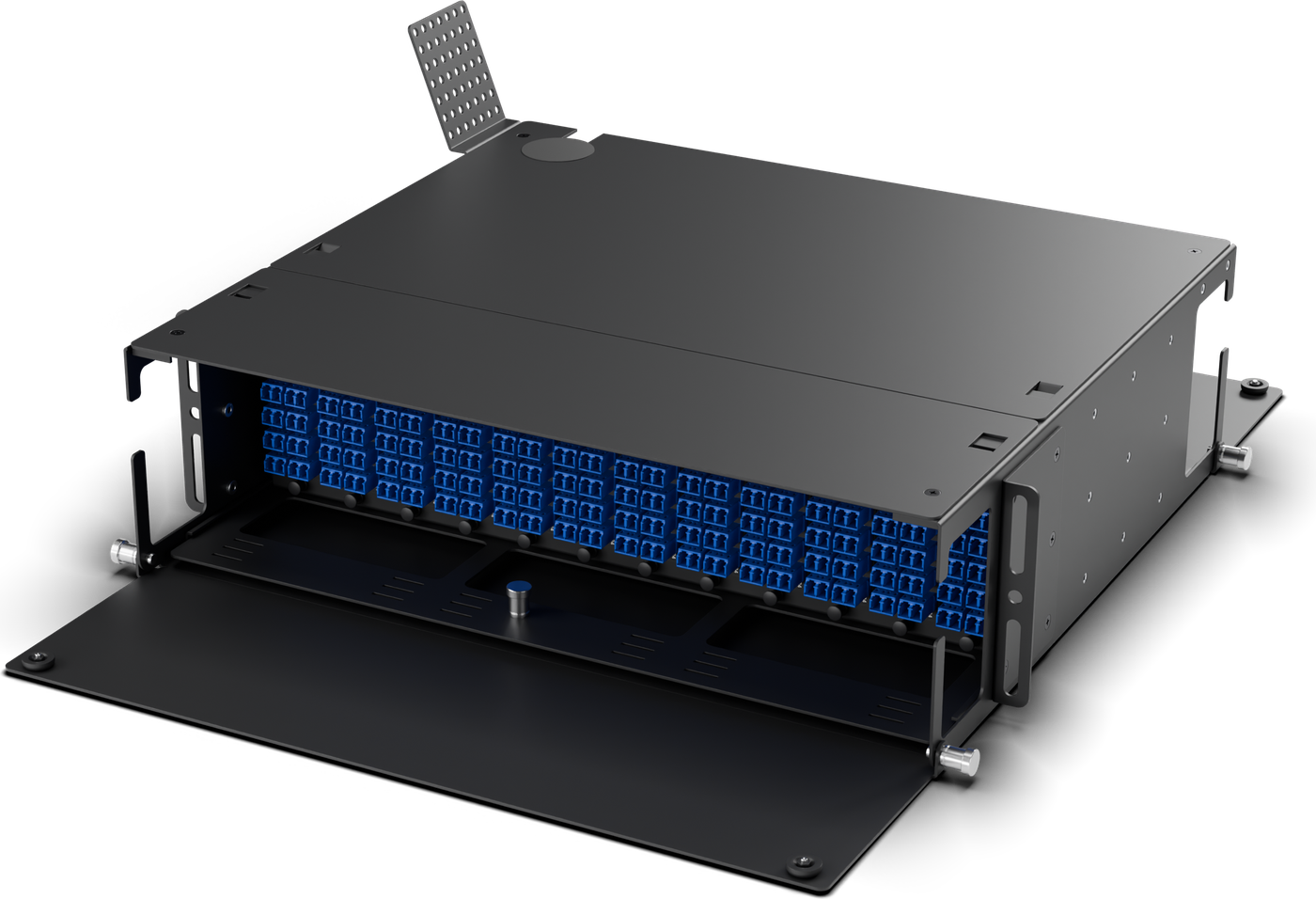

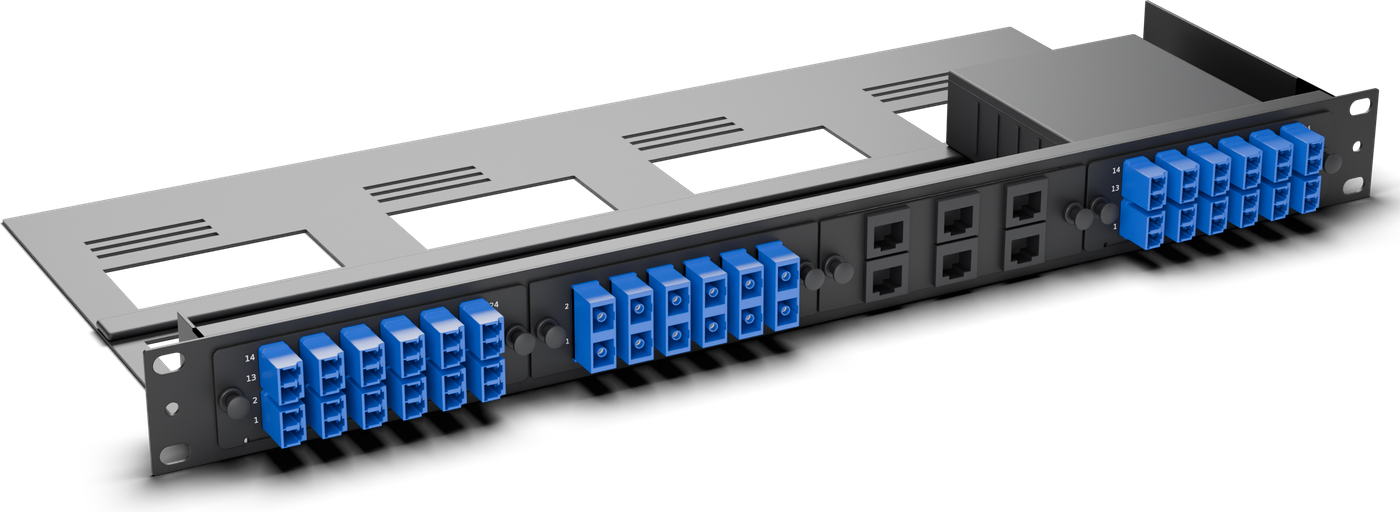

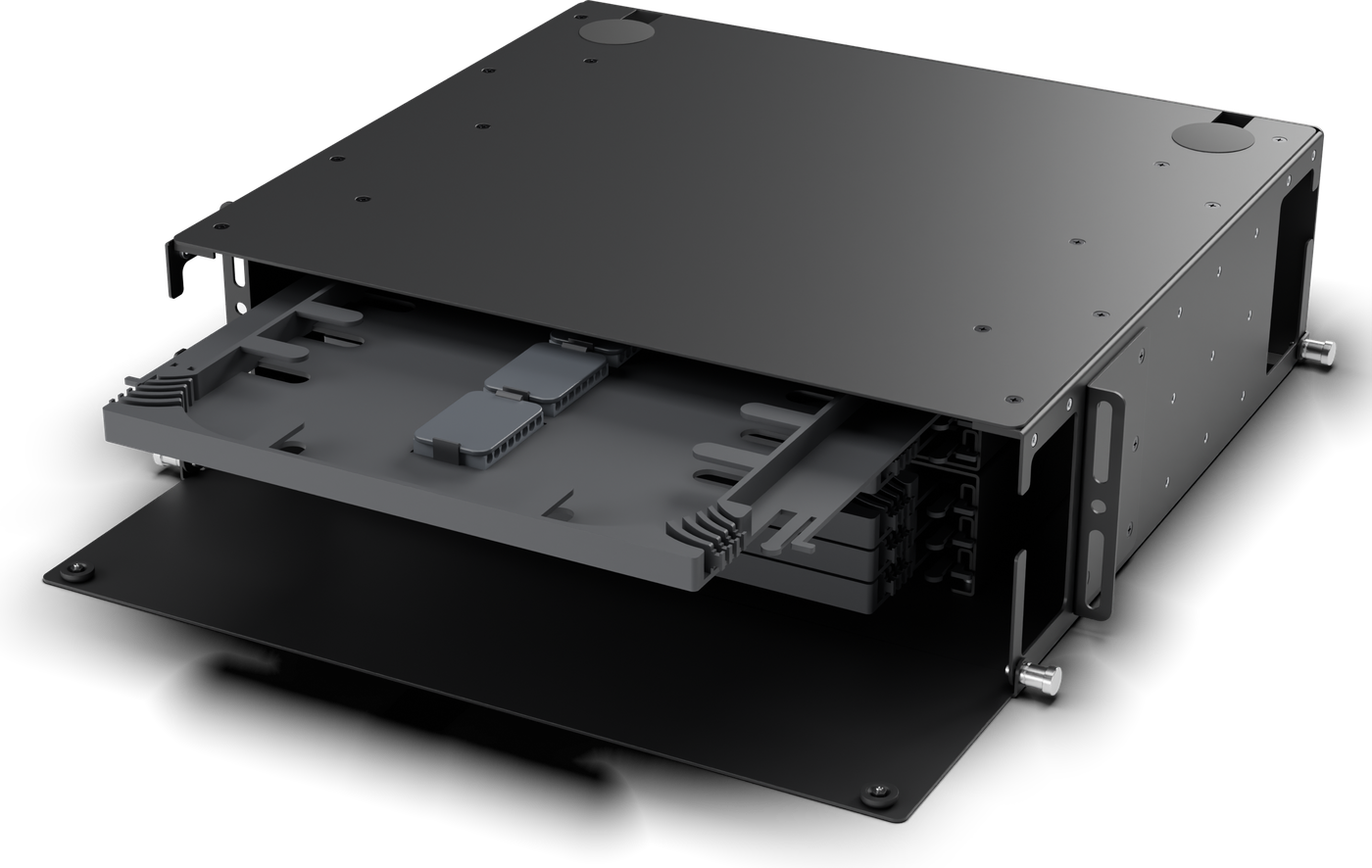

HD1U, HD3U with 6U and 9U stacks, HD3US splice-only and the shallow HD Slim 1U.
View Rack Mount Enclosures (4) →

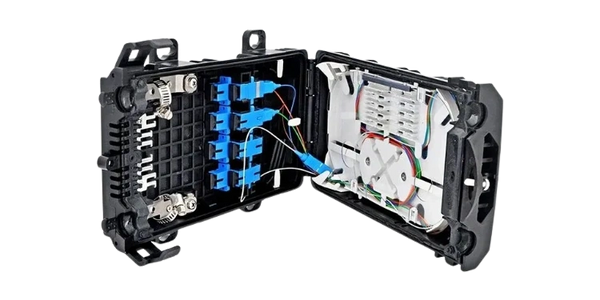

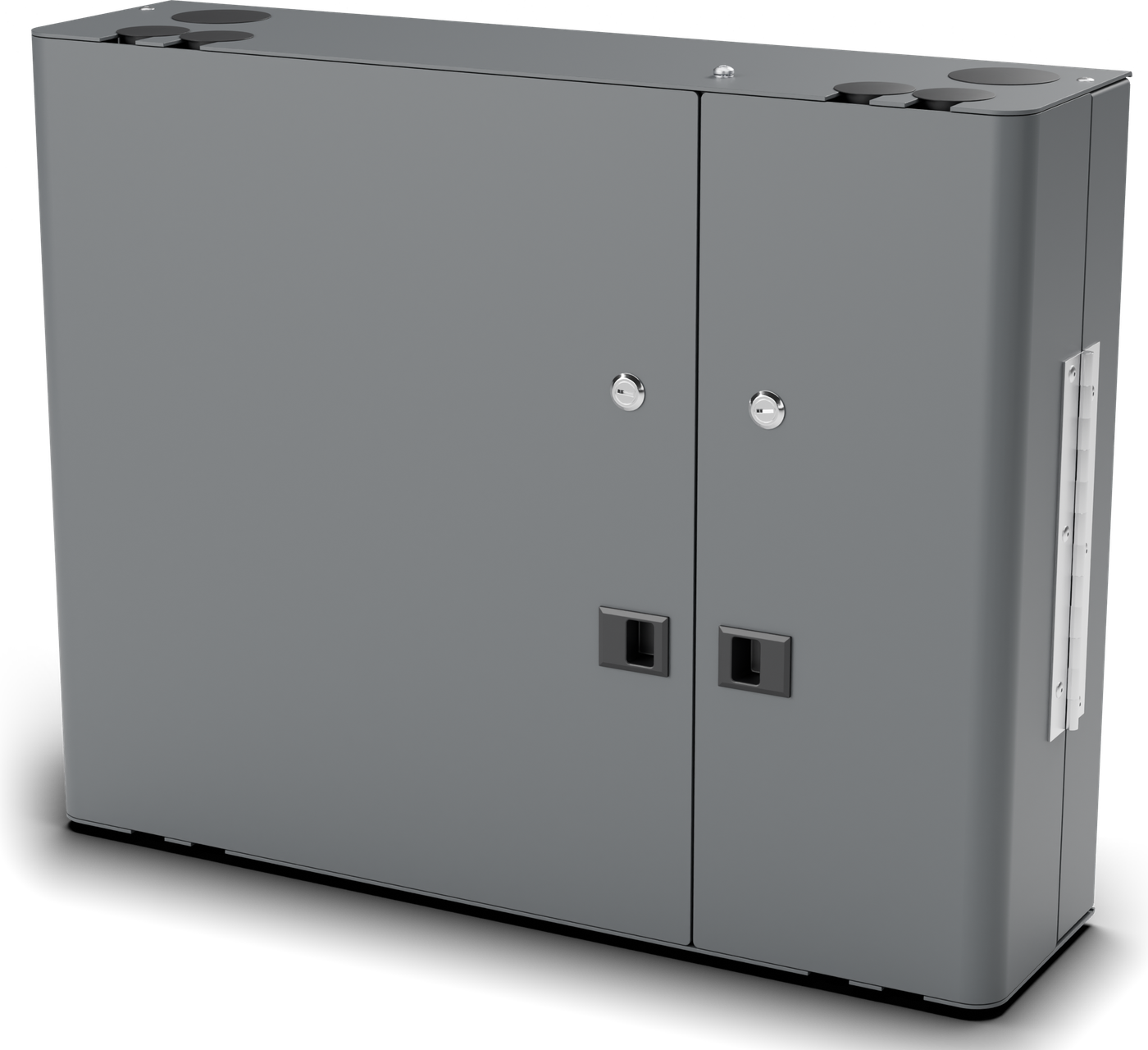

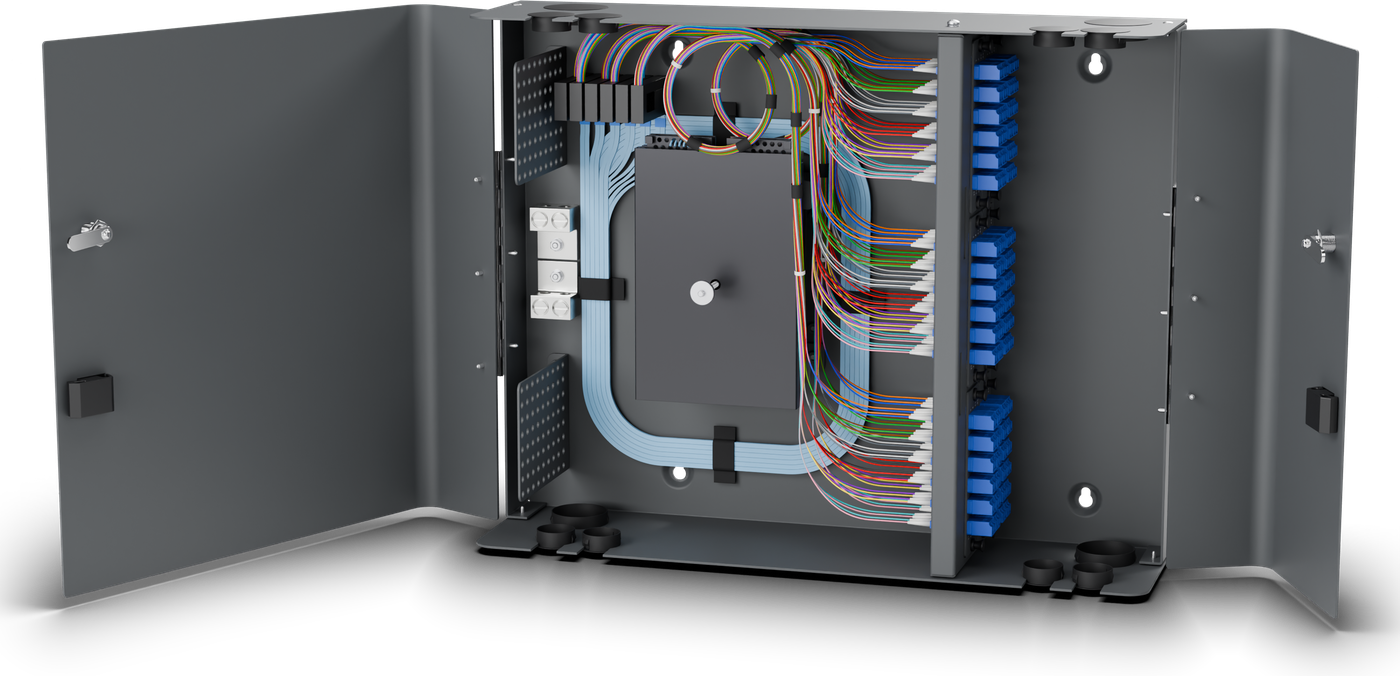

WMHD2X and WMHD6X patch and splice boxes with separate lockable doors.
View Wall Mount Enclosures (2) →

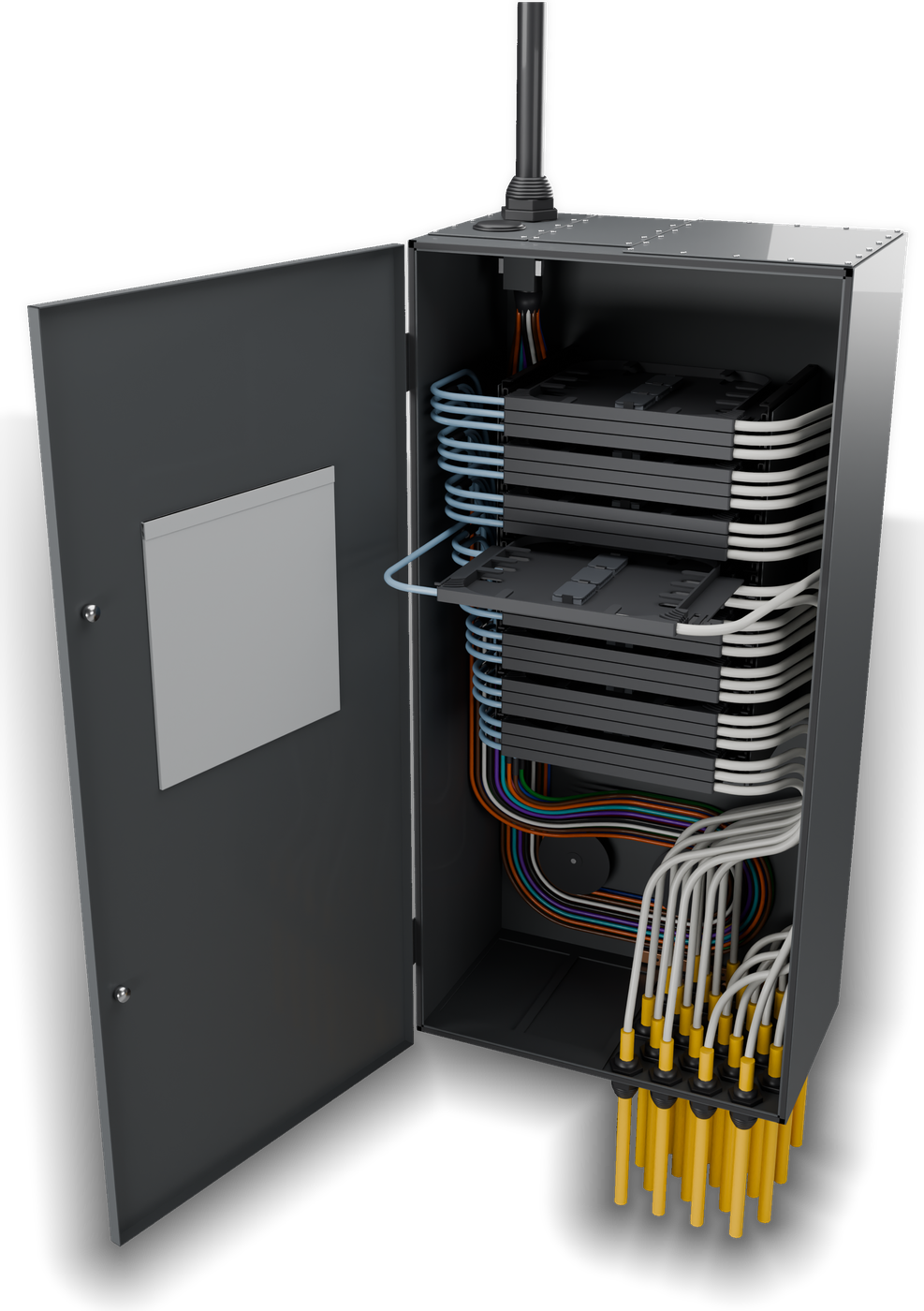

Your 6,912F OSP entry cable, armored or dielectric, spliced to 24 x 288F or 48 x 144F on 24 HD3US trays.
View Fiber Entrance Cabinet →

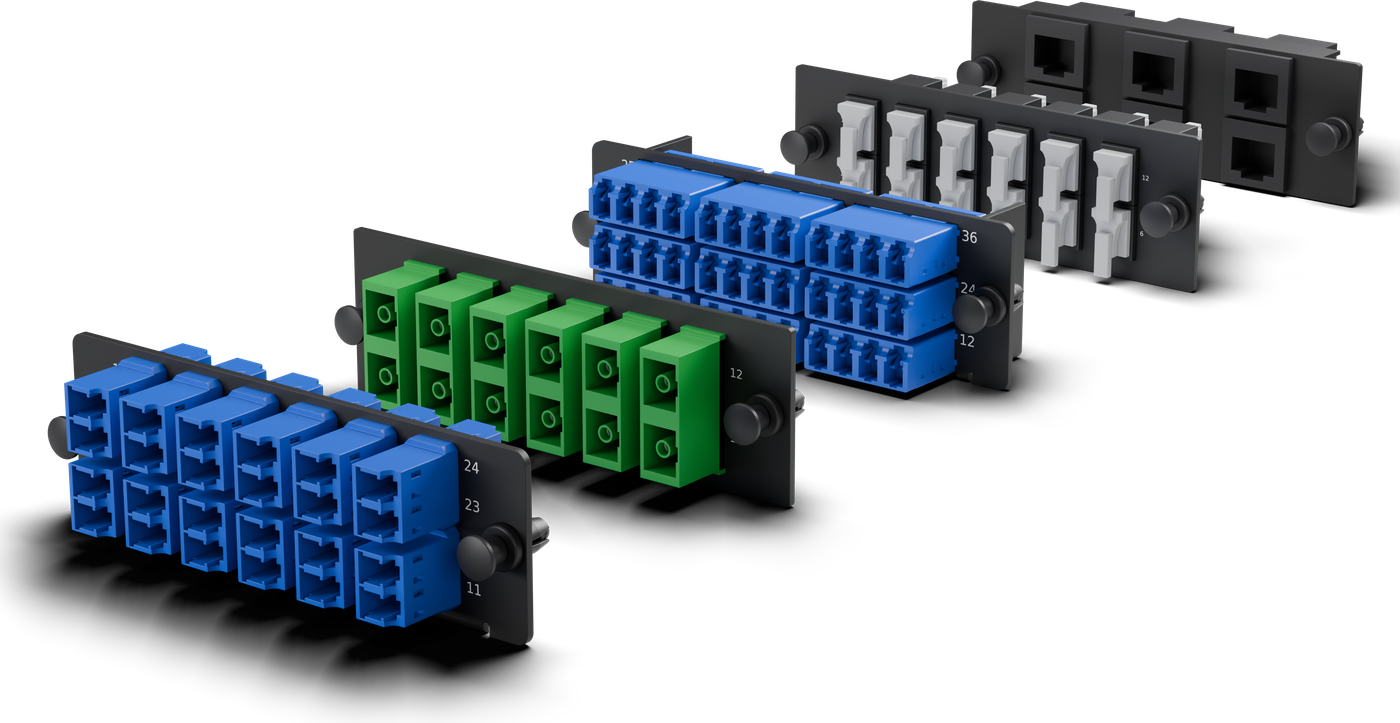

HD adaptor plates, MPO pass-through cassettes (Type A and Universal) and OOFC splice cassettes.
View Plates & Cassettes (3) →

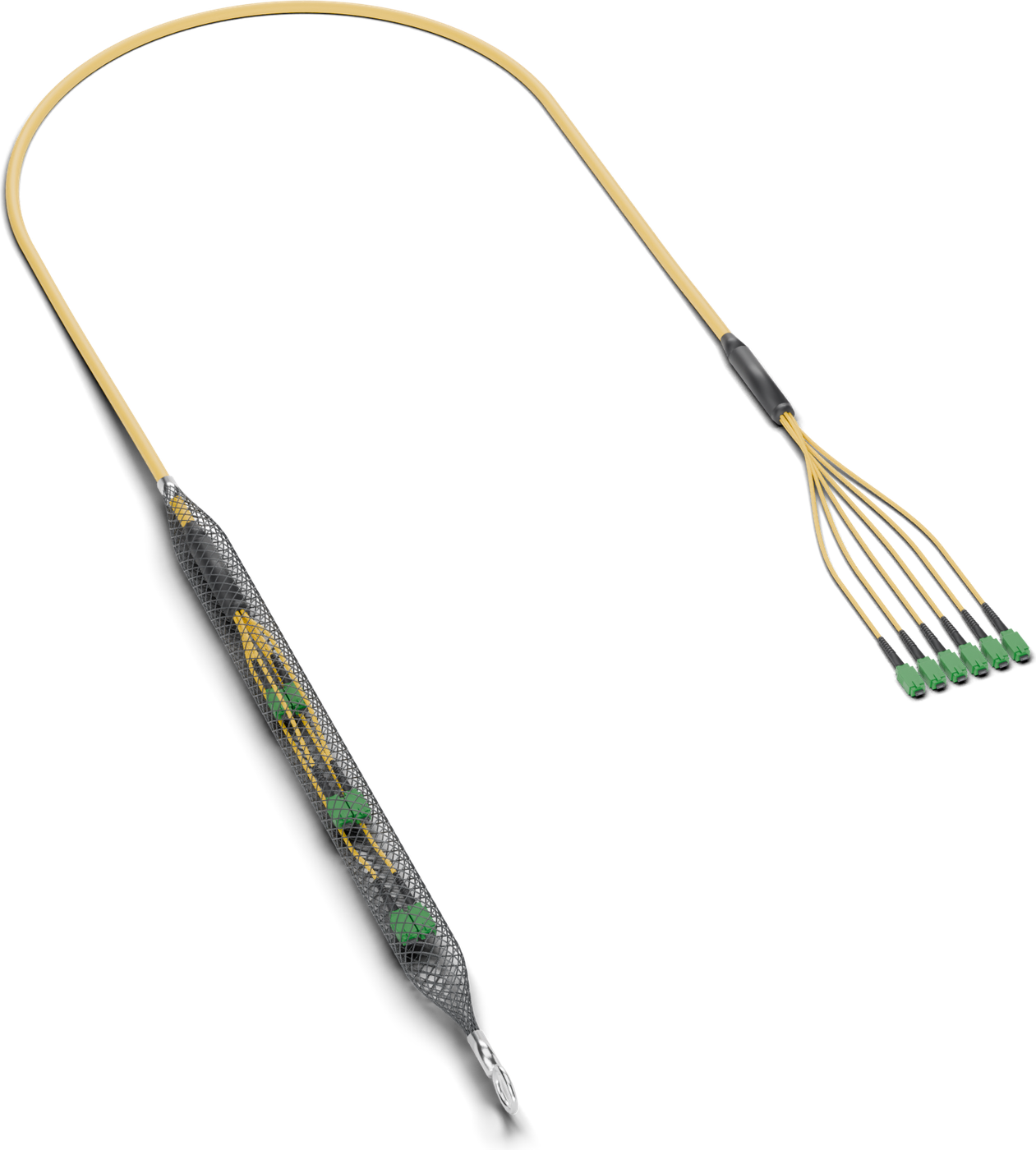

12 to 288F trunks built to length, and MPO jumpers in Type A, B or C.
View MPO Trunks & Jumpers (2) →

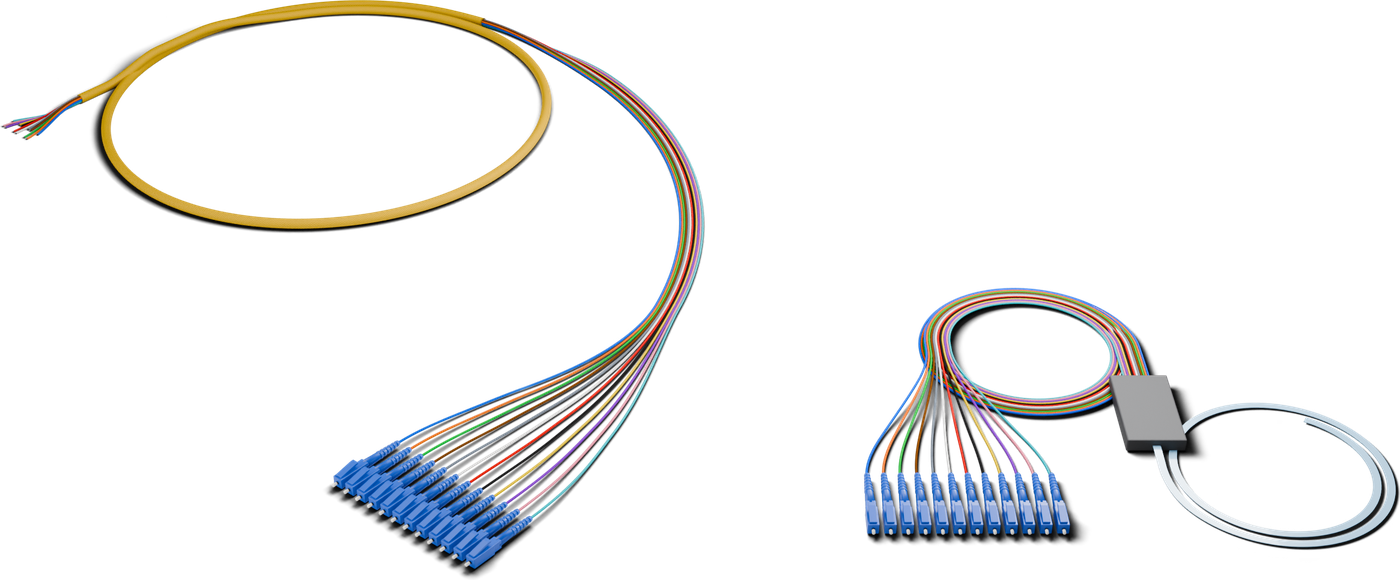

Pigtails, simplex and duplex jumpers, and preterminated cables (OSP and plenum).
View Fiber Cables & Assemblies (3) →

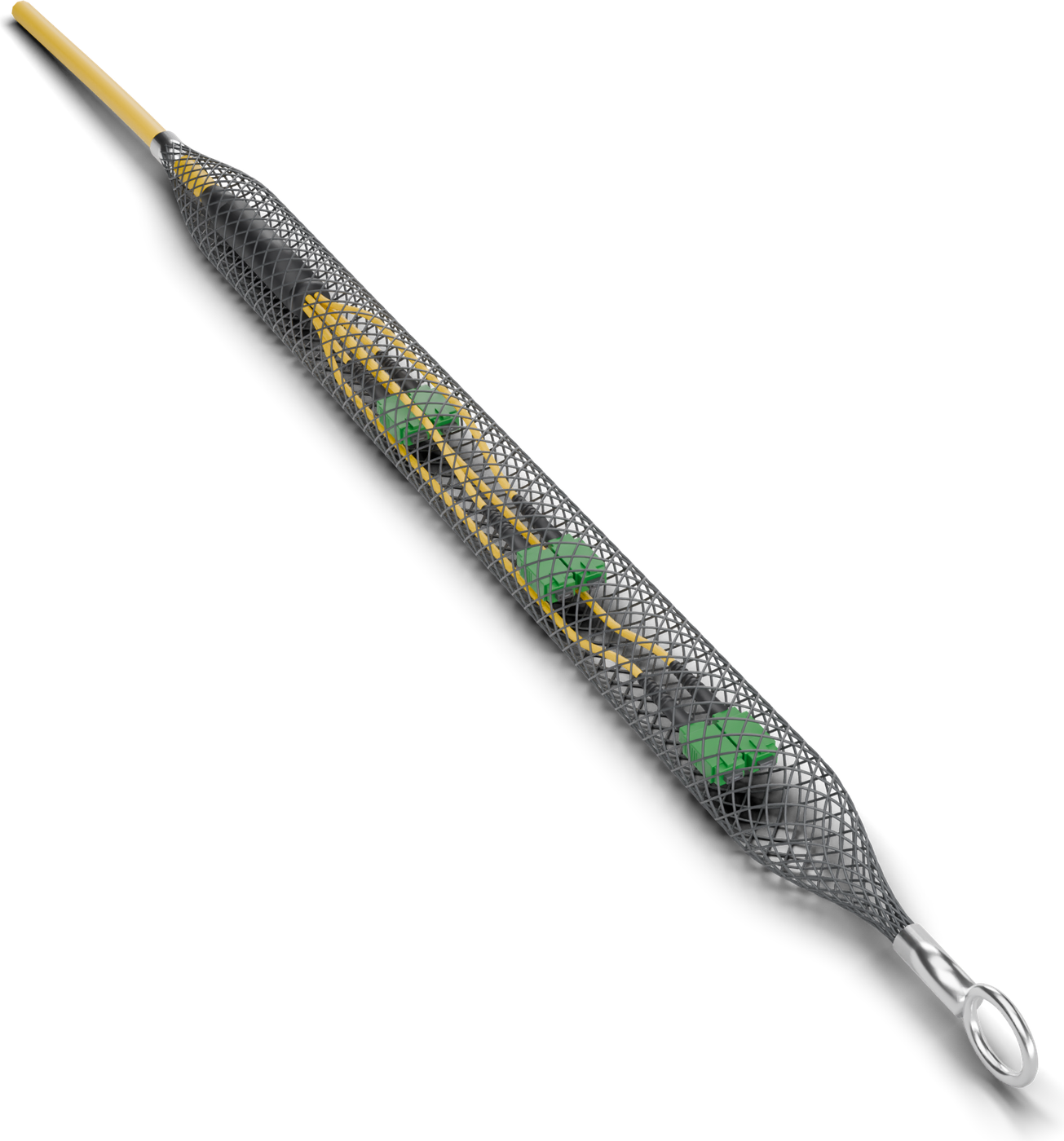

MPO backbones, Universal cassettes and high-count splicing for GPU clusters.
Learn More →

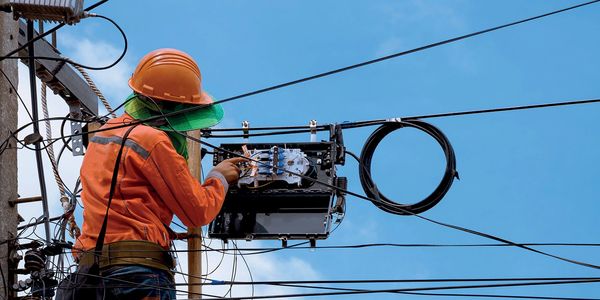

Headends, hubs, huts and nodes: SC/APC patch and splice from the OSP in.
Learn More →

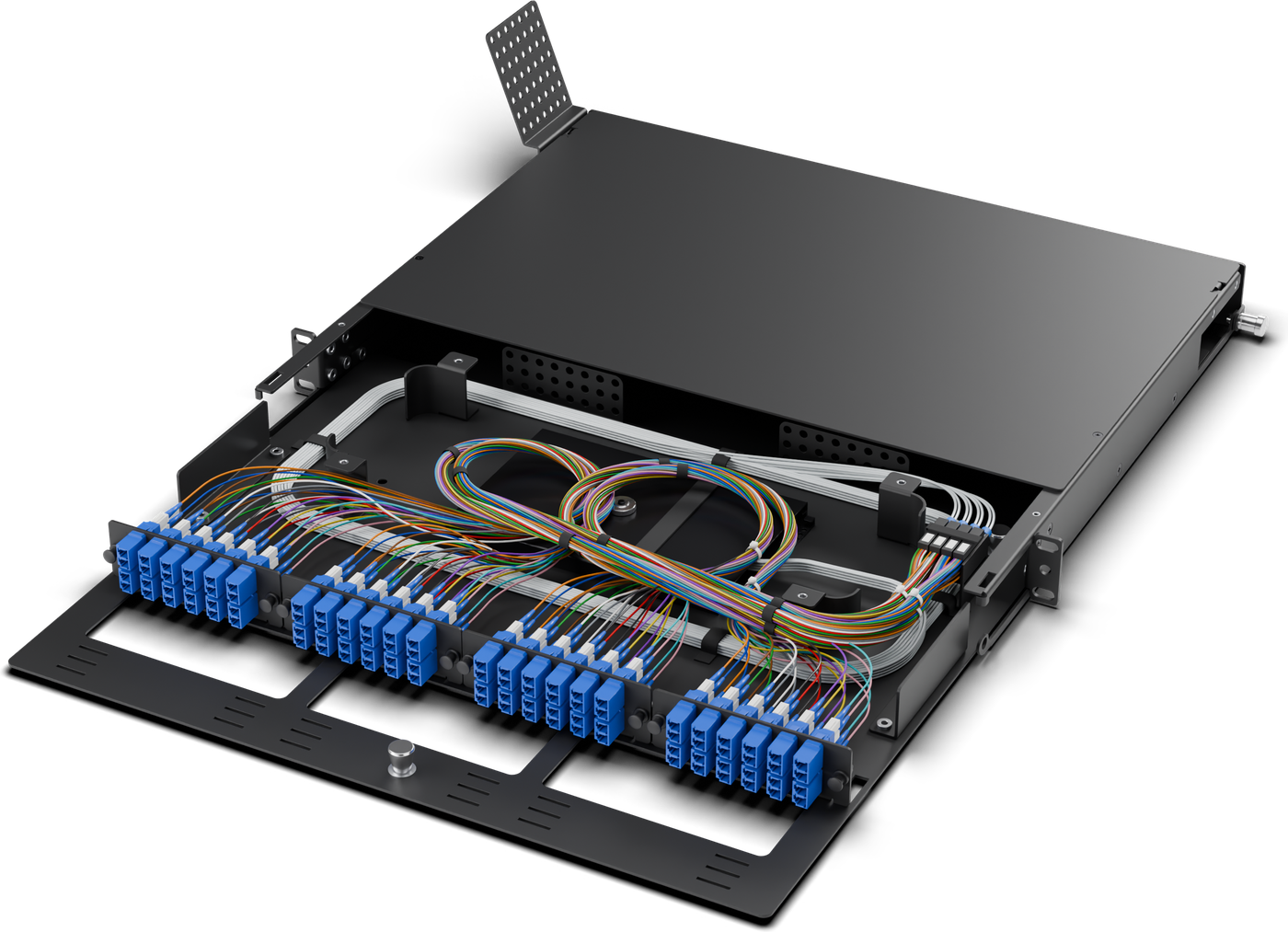

Building entrances, MDF and IDF rooms, fiber and Cat 6 between them.
Learn More →
Made in USA enclosures for agencies, facilities and public networks.
Learn More →
Every HD module shares the same 4.29 x 1.38 in front. Choose the enclosure for the space, then the plates or cassettes for the connector, and change modules later instead of the chassis.
| Enclosure | Mount | HD Positions |
|---|---|---|
| HD1U | 19 in rack, 1U | 4 |
| HD Slim 1U | 19 in rack, 1U, 8.66 in deep | 4 |
| HD3U (HD6U, HD9U) | 19 in rack, 3U (6U, 9U) | 12 (24, 36) |
| WMHD2X | Wall | 2 |
| WMHD6X | Wall | 6 |
Enter your email once and the PDF downloads right away.
Tell us the connector, polish, fiber count and fiber type. We configure and load to order.
