A light, shallow 1U panel with four HD positions and nothing else to get in the way: no drawer, no lid, no splice trays. Cassettes and plates drop in from the front, and at 8.66 in deep it fits shallow cabinets and network racks where a full-depth enclosure will not.
Order the empty panel HDS1U-E plus up to four HDP-, MPC- or OOFC- modules. Mix freely.
HDS1U-EEach position takes any One Optics HD module: an HD adaptor plate (LC, SC, MTP or Cat 6 RJ45), an MPO pass-through cassette or an OOFC splice cassette, ordered separately and mixed freely.
Four MPO pass-through cassettes.

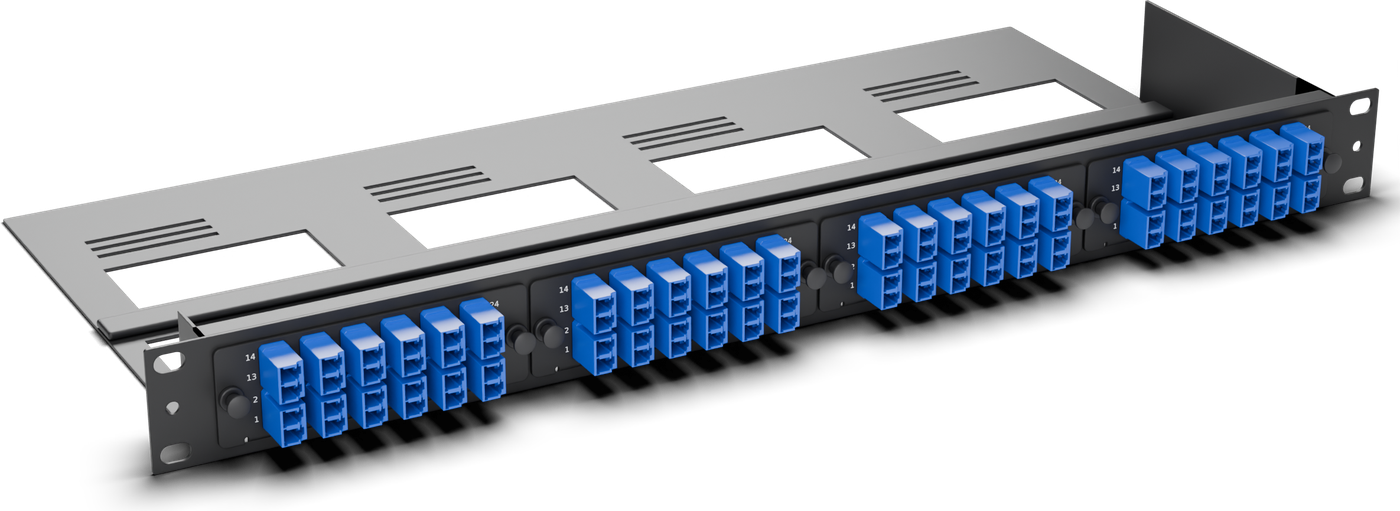

Straight patching: 12 or 24 LC, 36 LC quad, 12 SC, 12 MTP or 6 Cat 6 RJ45 per position.
8 MTP-12 trunks in at the rear, 96 LC/UPC ports out at the front.
Splices inside each cassette, no trays in the panel.
All four positions open for the modules you add later.
| Rack Size | 1 RU, EIA-310 19 in rack |
|---|---|
| Size (H x W x D) | 1.72 x 19.00 x 8.66 in [43.6 x 482.6 x 220 mm], nominal |
| HD Positions | 4, HD footprint 4.29 x 1.38 in [109 x 35 mm] |
| Maximum Capacity | 144 LC, 96 LC via MPO, 48 SC, 24 RJ45 |

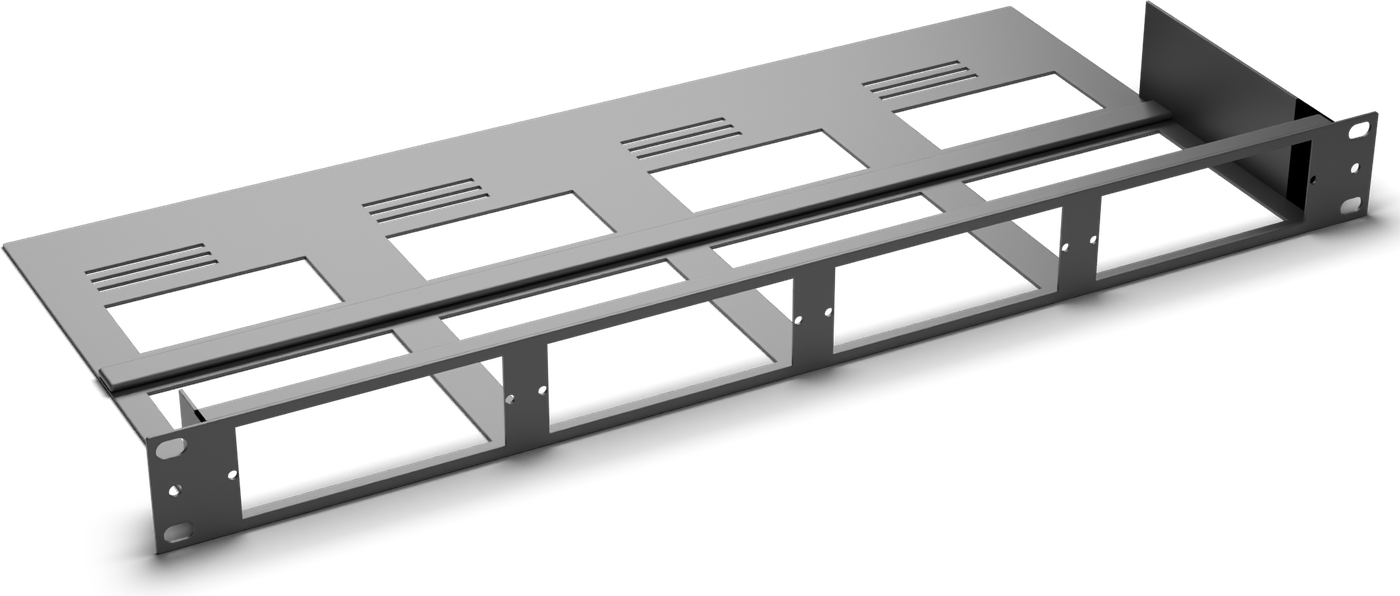

| Construction | Fixed open frame with front rack ears; open deck with cable cutouts and vent slots; no lid, no drawer |
| Material / Finish | Cold-rolled steel, black powder coat |
| Weight | Approx. 1.5 lb [0.7 kg], empty |
| Module Mounting | Front, push-pin fasteners on each module |
| Fiber Management | Patch only: no splice trays or pigtails in the panel; splicing in OOFC cassettes |
| Compliance | Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request. |
| Documentation | Test data and certificate of conformance available on request. |
| Module | Per Position | Panel |
|---|---|---|
HDP-LC-12 | 6x LC duplex | 48 LC |
HDP-LC-24 | 12x LC duplex | 96 LC |
HDP-LC-36Q | 9x LC quad | 144 LC |
HDP-SC-12 | 6x SC duplex | 48 SC |
HDP-MTP-12 | HD adaptor plate, 12x MTP adaptors | 48 MTP |
HDP-RJ45-6 | HD adaptor plate, 6x Cat 6 RJ45 couplers | 24 RJ45 |
MPC-24-LC-A / -U | 2x MTP-12 to 24 LC | 96 LC |
OOFC-24 | 24 LC, spliced | 96 LC |
OOFC-36 | 36 LC, spliced | 144 LC |
Positions can be mixed in one panel; blank plates close unused positions.
| Part Number | Description | |
|---|---|---|
HDS1U-E | HD Slim 1U empty panel: 4 open HD positions, rack ears, black powder coat | Quote |
HDP-LC-12 / LA-12 | HD adaptor plate, 6x LC duplex (12 ports), UPC / APC | Quote |
HDP-LC-24 / LA-24 | HD adaptor plate, 12x LC duplex (24 ports), UPC / APC | Quote |
HDP-LC-36Q / LA-36Q | HD adaptor plate, 9x LC quad (36 ports), UPC / APC | Quote |
HDP-SC-12 / SA-12 | HD adaptor plate, 6x SC duplex (12 ports), UPC / APC | Quote |
HDP-MTP-12 | HD adaptor plate, 12x MTP adaptors | Quote |
HDP-RJ45-6 | HD adaptor plate, 6x Cat 6 RJ45 couplers | Quote |
HDP-BLANK | Blank plate for unused positions | Quote |
MPC-24-LC-A / -U | MPO pass-through cassette, 2x MTP-12 to 12x LC/UPC duplex; Type A (A) or Method B / Universal (U) | Quote |
OOFC-[L/R]-[LC/LA]-24 | Splice cassette, 24 LC ports, loose tube (L) or ribbon (R) | Quote |
OOFC-[L/R]-[LC/LA]-36 | Splice cassette, 36 LC ports, loose tube (L) or ribbon (R) | Quote |
HDS1U-E = HD Slim 1U, empty. Modules are ordered separately and fit any of the 4 positions. LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC; L = loose tube, R = ribbon. Factory-assembled panels (plates or cassettes installed) available on request. Singlemode is standard; multimode on request. Dimensions are nominal.
MPC-24-LC-A (Type A) and MPC-24-LC-U (Method B / Universal): 2x MTP-12 to 12 LC duplex.
