HD adaptor plates: LC, SC, LC quad, MTP and RJ45

Left to right: 24-port LC/UPC, 12-port SC/APC, 36-port LC quad, 12-port MTP and 6-port RJ45 plates.

Adaptor plateBABA compliant

HD Adaptor Plates

Name: HD Adaptor Plates
Brand: One Optics
SKU: HDP-LC-24

HDP- · LC · SC · LC quad · MTP · Cat 6 RJ45 · blank · UPC / APC

The swappable front modules of every One Optics HD enclosure. Every plate shares the same 4.29 x 1.38 in footprint and push-pin mounting, so a panel moves from SC to LC, from UPC to APC, or up to LC quad density by changing plates, not the chassis.

4.29 x 1.38Footprint, in

36LC ports max (quad)

7Plate styles

Build a plate part numberHDP-[connector]-[ports]

Connector

Ports

Fiber mode

Quote This Part

Adaptor colors: blue UPC, green APC, aqua multimode.

PDF Get the Datasheet Request a Quote

Overview

One Footprint, Every Connector

Order plates loaded in an enclosure build, or on their own for adds, moves and changes. Copper RJ45 and fiber plates mix in the same enclosure.

Common HD footprint: 4.29 x 1.38 in [109 x 35 mm]
Two push-pin fasteners hold each plate in its position
LC duplex: 12 or 24 ports; SC duplex: 12 ports
LC quad: 36 ports per plate for ultra high density
Quad plates: singlemode LC/UPC (blue) or LC/APC (green); multimode LC/UPC (aqua).
MTP, Cat 6 RJ45 and blank plates for mixed and spare positions
Color-coded adaptors: blue UPC, green APC, aqua multimode
Cold-rolled steel, black powder coat
Fits HD1U, HD3U, HD Slim 1U, WMHD2X and WMHD6X; HDP-LC-36Q/HDP-LA-36Q fits: HD1U, HD Slim 1U, HD3U (patch-only or HD3US)

36-port LC quad plates: up to 144 LC in the HD1U or HD Slim 1U; up to 432 LC in the HD3U as a patch-only build or spliced in an HD3US. The HD3U internally spliced 432 LC build uses splice cassettes: HD3U-C-LC-432.

Specifications

Plate Size (W x H)	4.29 x 1.38 in [109 x 35 mm]; RJ45 plate 1.36 in high
Mounting	2 push-pin fasteners, 3.91 in [99.4 mm] centers
Material	Cold-rolled steel (SPCC), black powder coat
BABA	BABA compliant (self-certified)
LC Duplex Adaptor Depth	1.15 in: 0.64 in front, 0.52 in rear
LC Adaptor IL	0.2 dB typical, LC/UPC duplex and quad
Fiber Mode	Singlemode standard; multimode on request
Fits	HD1U (4), HD3U (12), HD Slim 1U (4), WMHD2X (2), WMHD6X (6); HDP-LC-36Q/HDP-LA-36Q fits: HD1U, HD Slim 1U, HD3U (patch-only or HD3US)
Compliance	Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request.
Documentation	Test data and certificate of conformance available on request.

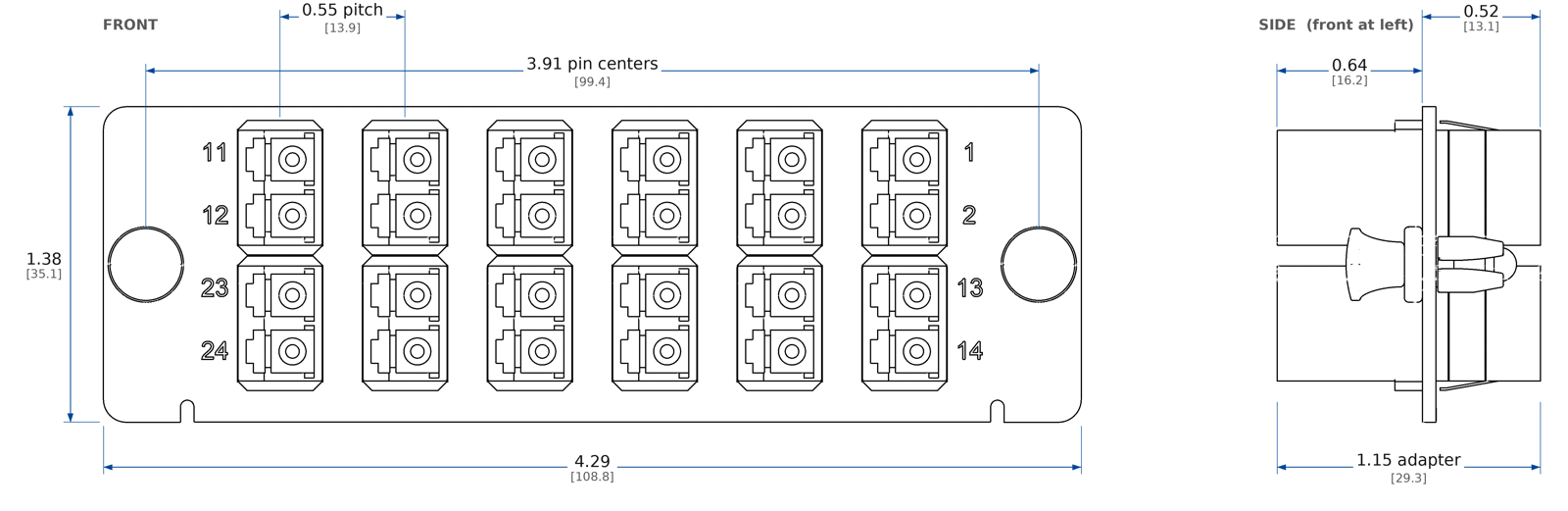

24-port LC plate (12x LC duplex), front and side views. Dimensions in inches [mm].

Ordering

Standard Part Numbers

Part Number	Description

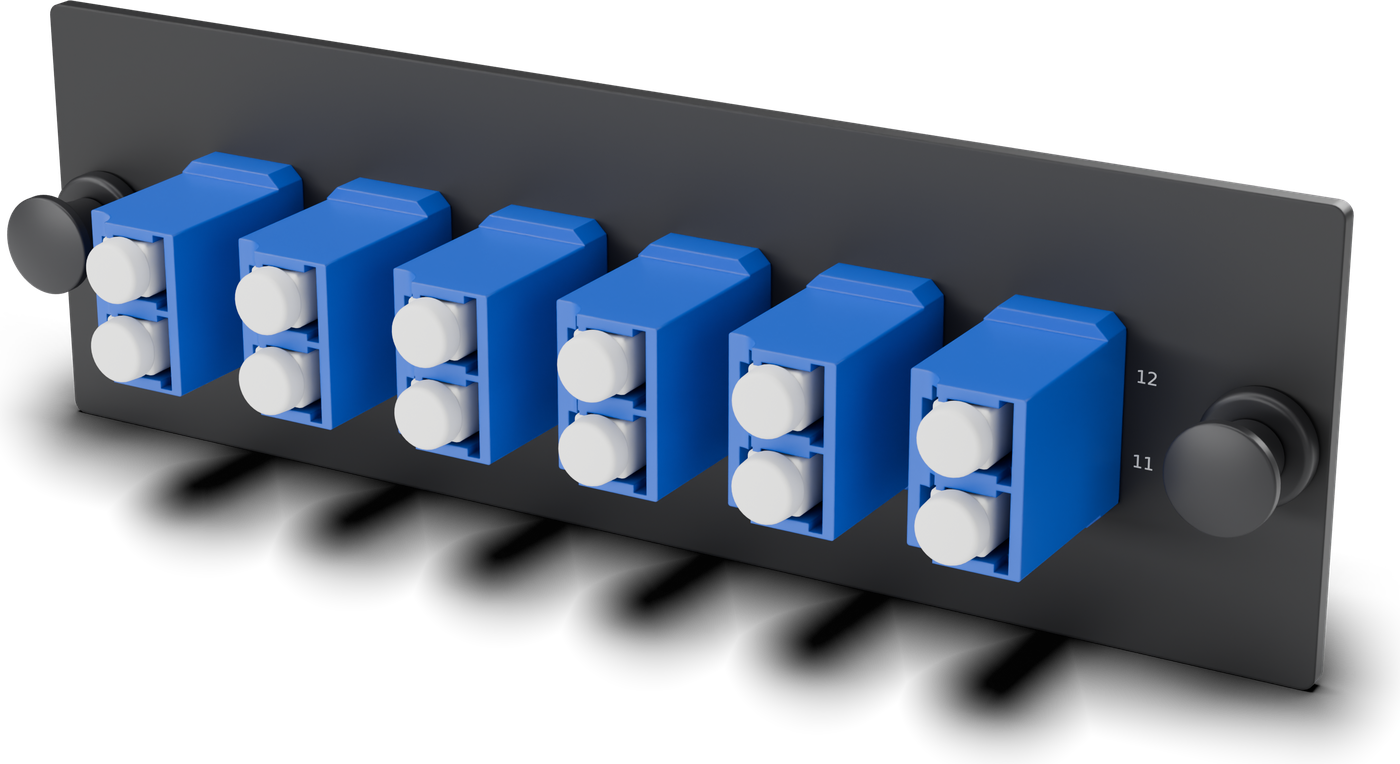

`HDP-LC-12`	12-port LC/UPC plate, 6x LC duplex adaptors	Quote
`HDP-LA-12`	12-port LC/APC plate, 6x LC duplex adaptors	Quote

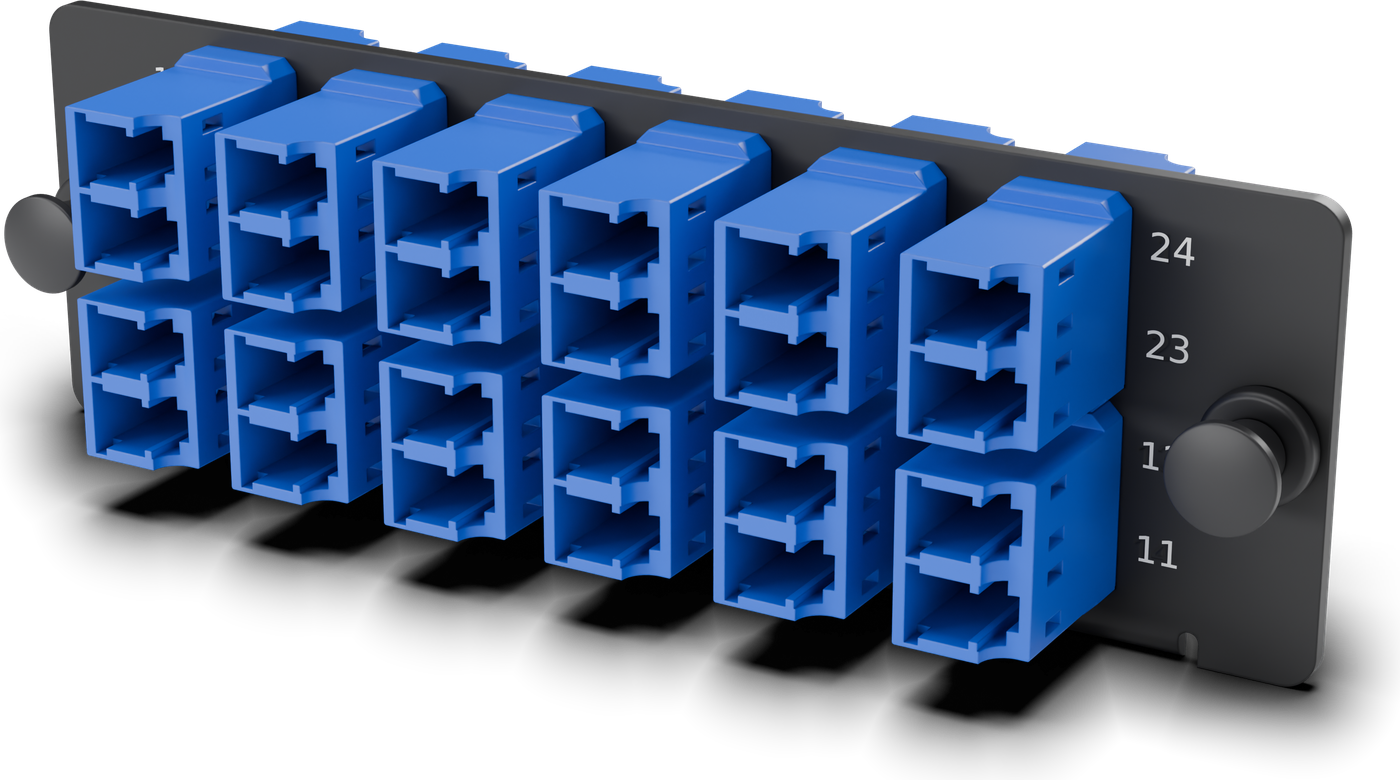

`HDP-LC-24`	24-port LC/UPC plate, 12x LC duplex adaptors	Quote

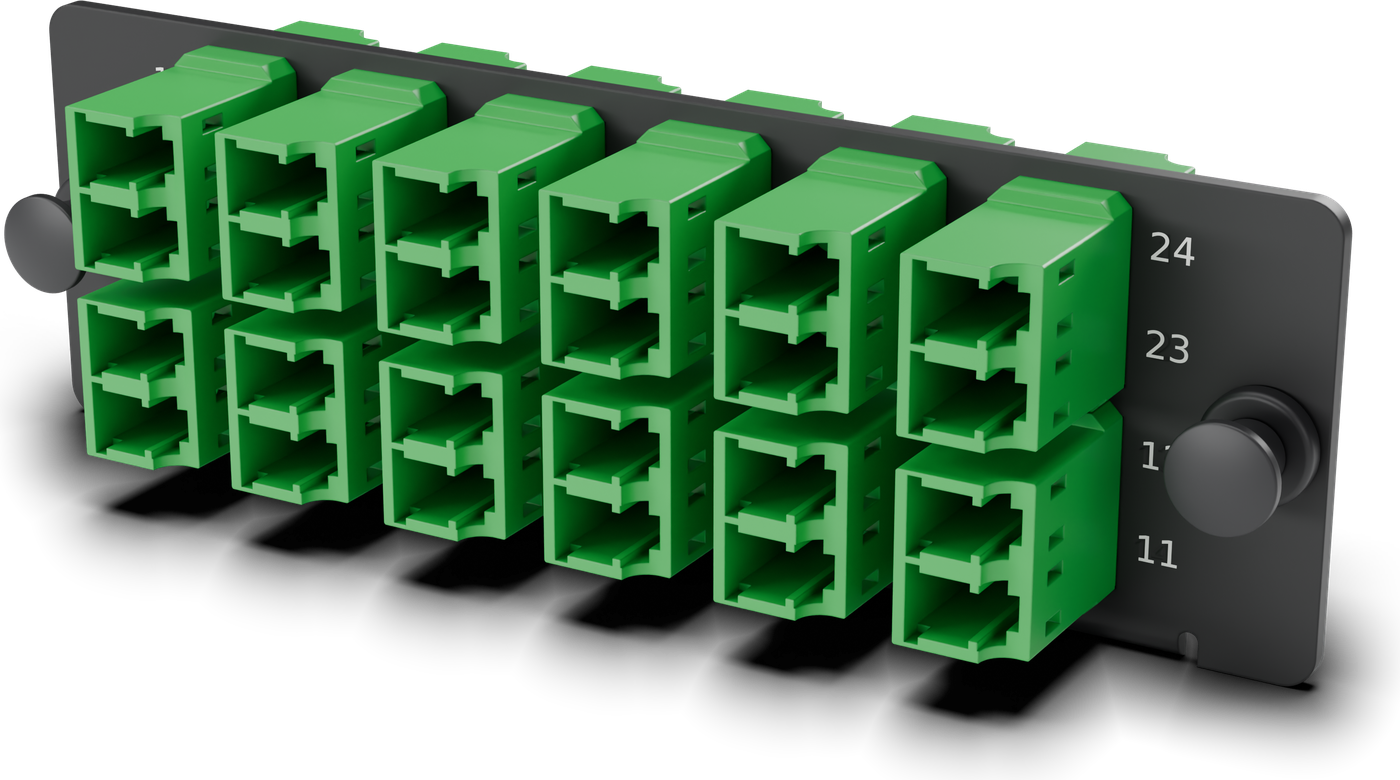

`HDP-LA-24`	24-port LC/APC plate, 12x LC duplex adaptors	Quote

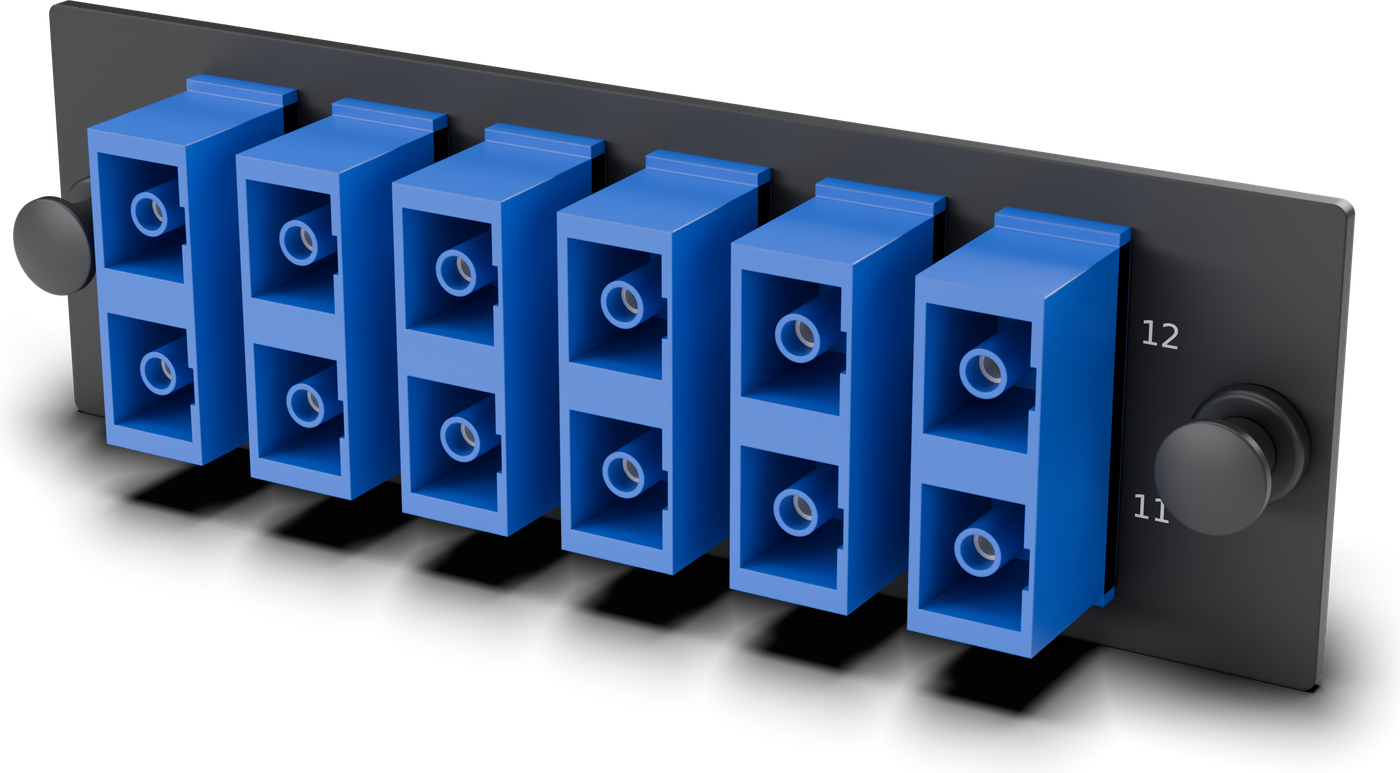

`HDP-SC-12`	12-port SC/UPC plate, 6x SC duplex adaptors	Quote

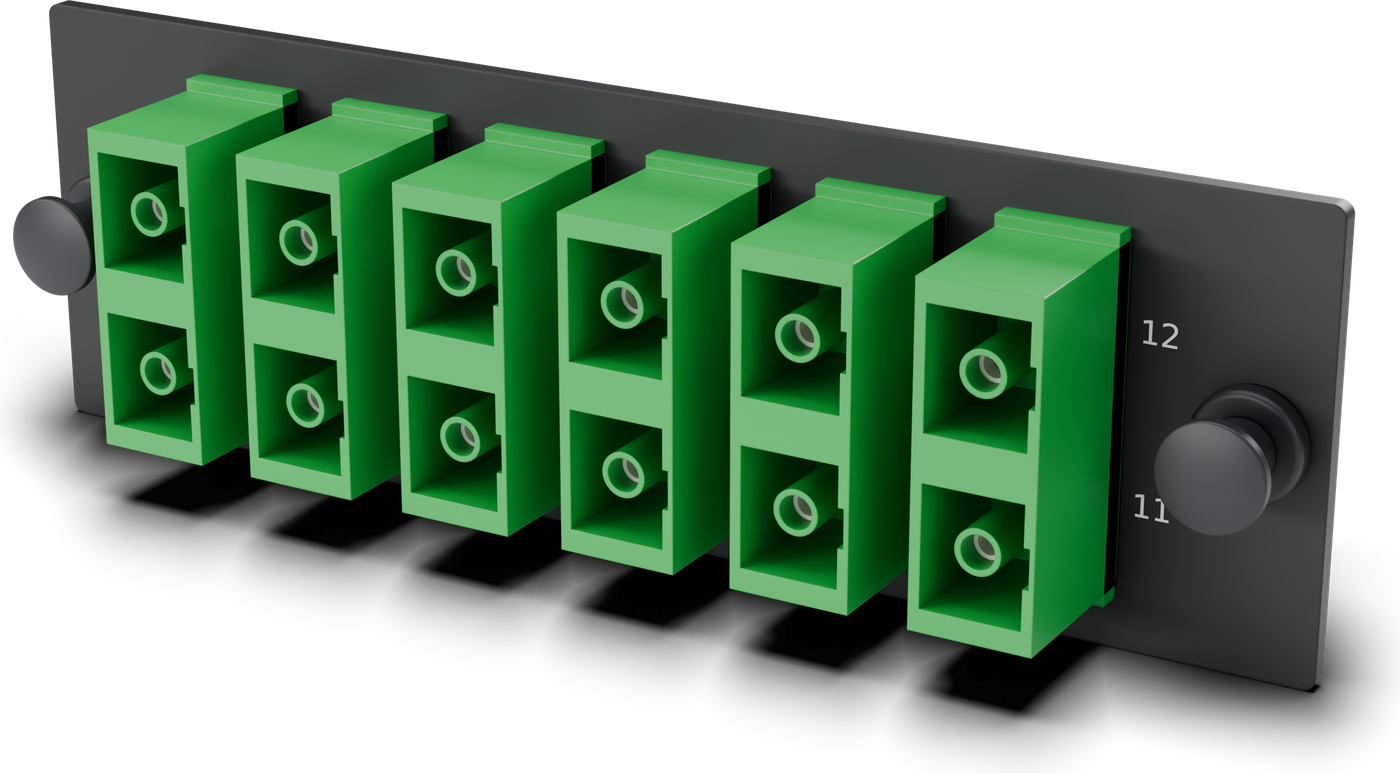

`HDP-SA-12`	12-port SC/APC plate, 6x SC duplex adaptors	Quote

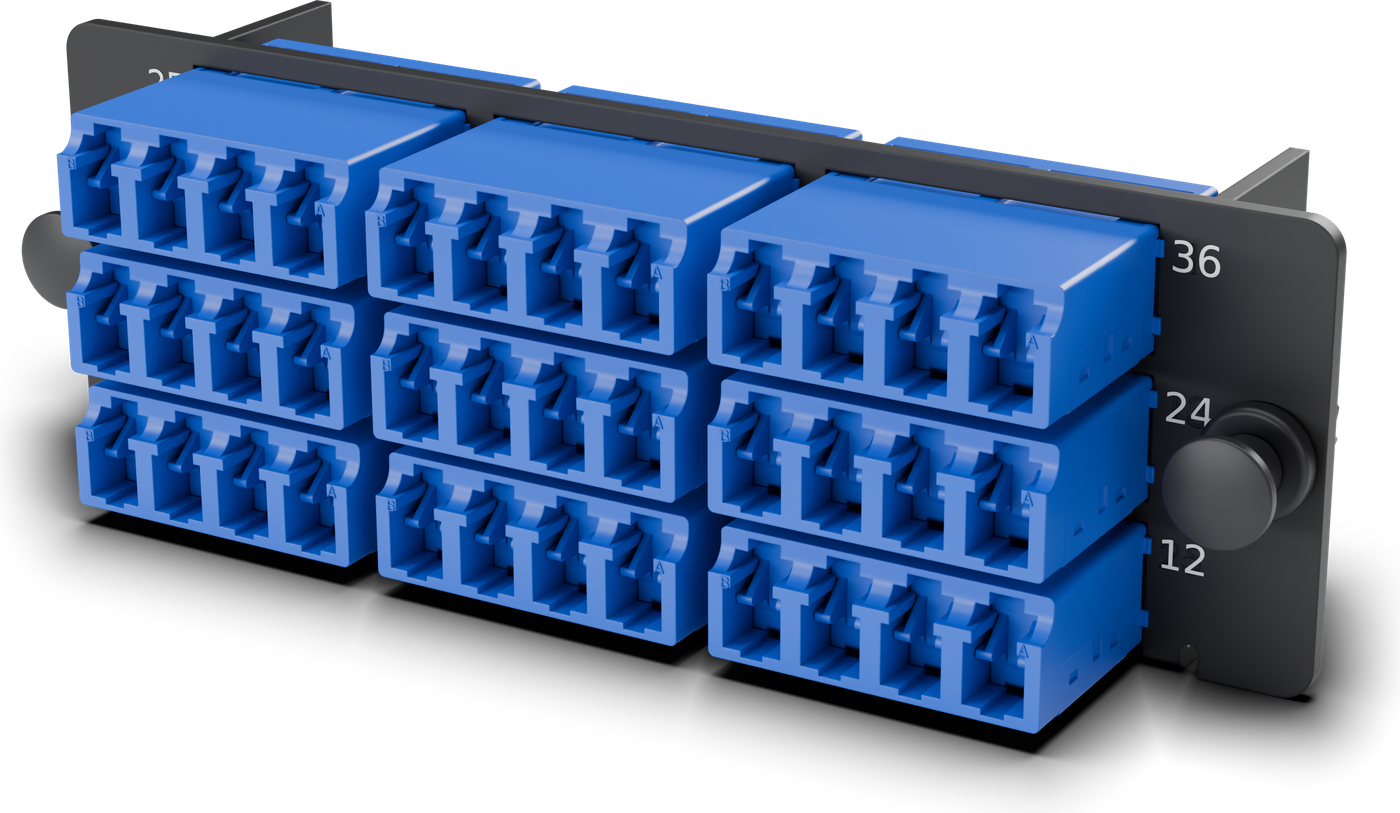

`HDP-LC-36Q`	36-port LC/UPC quad plate, 9x LC quad; fits HD1U, HD Slim 1U, HD3U (patch-only or HD3US)	Quote
`HDP-LA-36Q`	36-port LC/APC quad plate, 9x LC quad; fits HD1U, HD Slim 1U, HD3U (patch-only or HD3US)	Quote

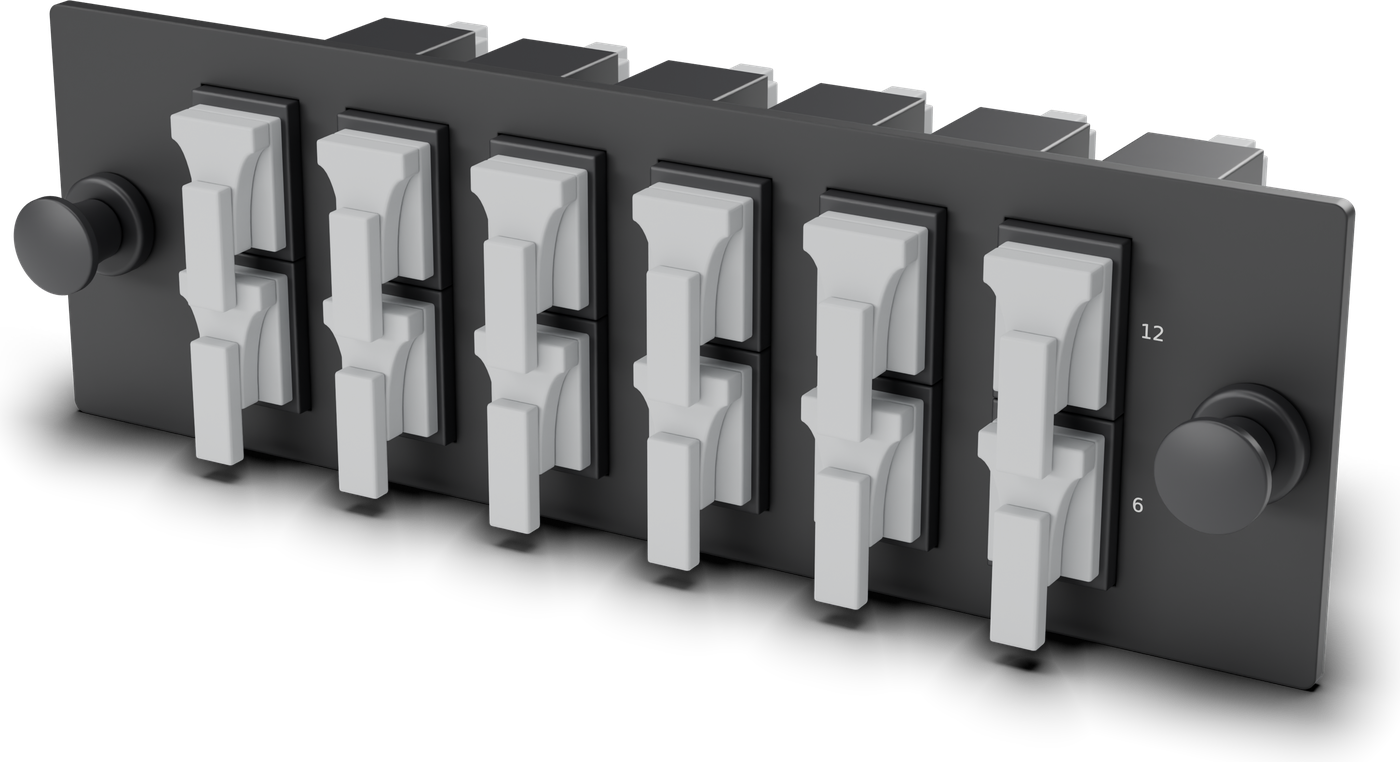

`HDP-MTP-12`	12-port MTP plate, 2 rows of 6	Quote

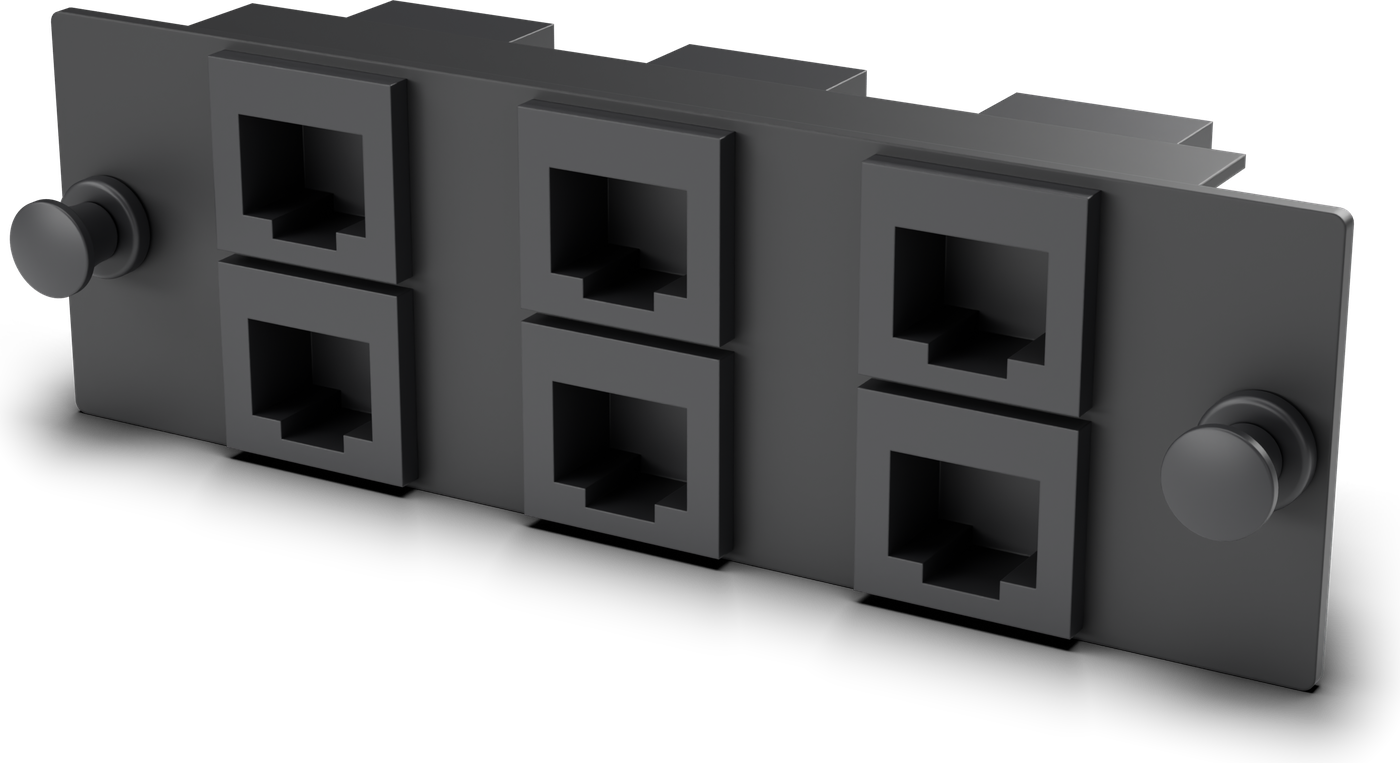

`HDP-RJ45-6`	6-port RJ45 plate	Quote

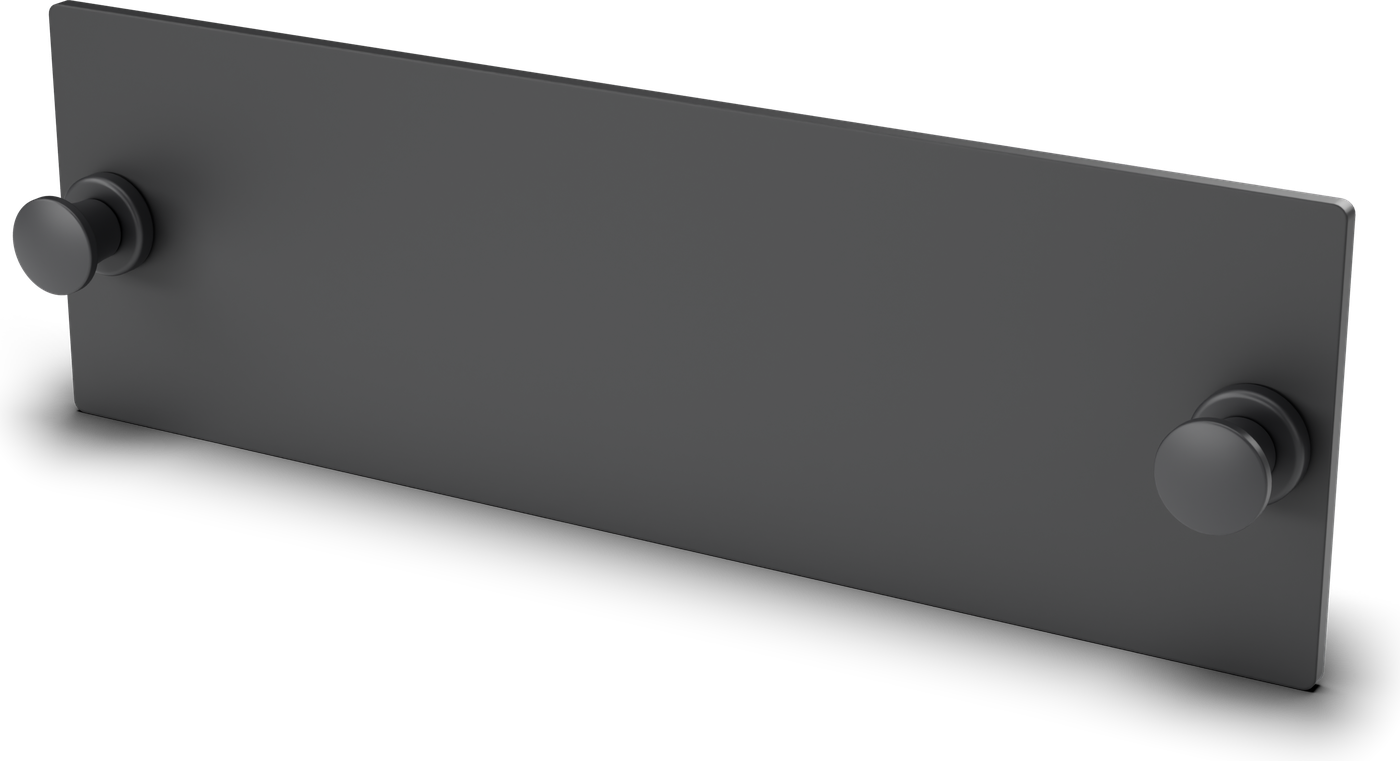

`HDP-BLANK`	Blank plate	Quote

Part number format: HDP-[LC/LA/SC/SA]-[ports]. LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC; 36Q = LC quad. Multimode: add -MM (aqua adaptors, UPC only; no multimode APC), e.g. HDP-LC-36Q-MM. Enclosure builds with multimode quad plates: the regular part number plus -MM (e.g. HD1U-A-LC-144-MM); builds that mix singlemode and multimode: -CUSTOM. Singlemode is standard; multimode available on request.
