Fiber Jumpers, Simplex & Duplex

Name: Fiber Jumpers, Simplex & Duplex
Brand: One Optics
SKU: DX-LCLC-03M

SX- / DX- · LC · SC · UPC / APC · Corning SMF-28 Ultra · 1.6 mm · 1 to 100 m

Duplex jumpers in ten LC and SC connector combinations, in UPC or APC polish, including UPC-to-APC and LC-to-SC hybrids, on Corning SMF-28 Ultra singlemode fiber with a 1.6 mm jacket. Any length from 1 to 100 m; simplex and multimode (OM3) versions are available on request.

10Connector pairs

AnyLength

0.20 dBIL max per connector

Build your part number[SX/DX]-[A][B]-[NN]M

Construction

End A

End B

Length

Quote This Part

Simplex and multimode (OM3): contact sales.

PDF Get the Datasheet Request a Quote

Overview

Every LC and SC Combination, Ready to Patch

Corning SMF-28 Ultra singlemode fiber (G.652.D and G.657.A1 compliant, bend-insensitive)
100% tested for end-face cleanliness and geometry
1.6 mm duplex jacket
LC and SC, UPC or APC, in any of 10 pairings, including UPC-to-APC and LC-to-SC hybrids
Any length from 1 to 100 m
Simplex and multimode (OM3) versions on request
Applications: patching in data center, enterprise and carrier panels

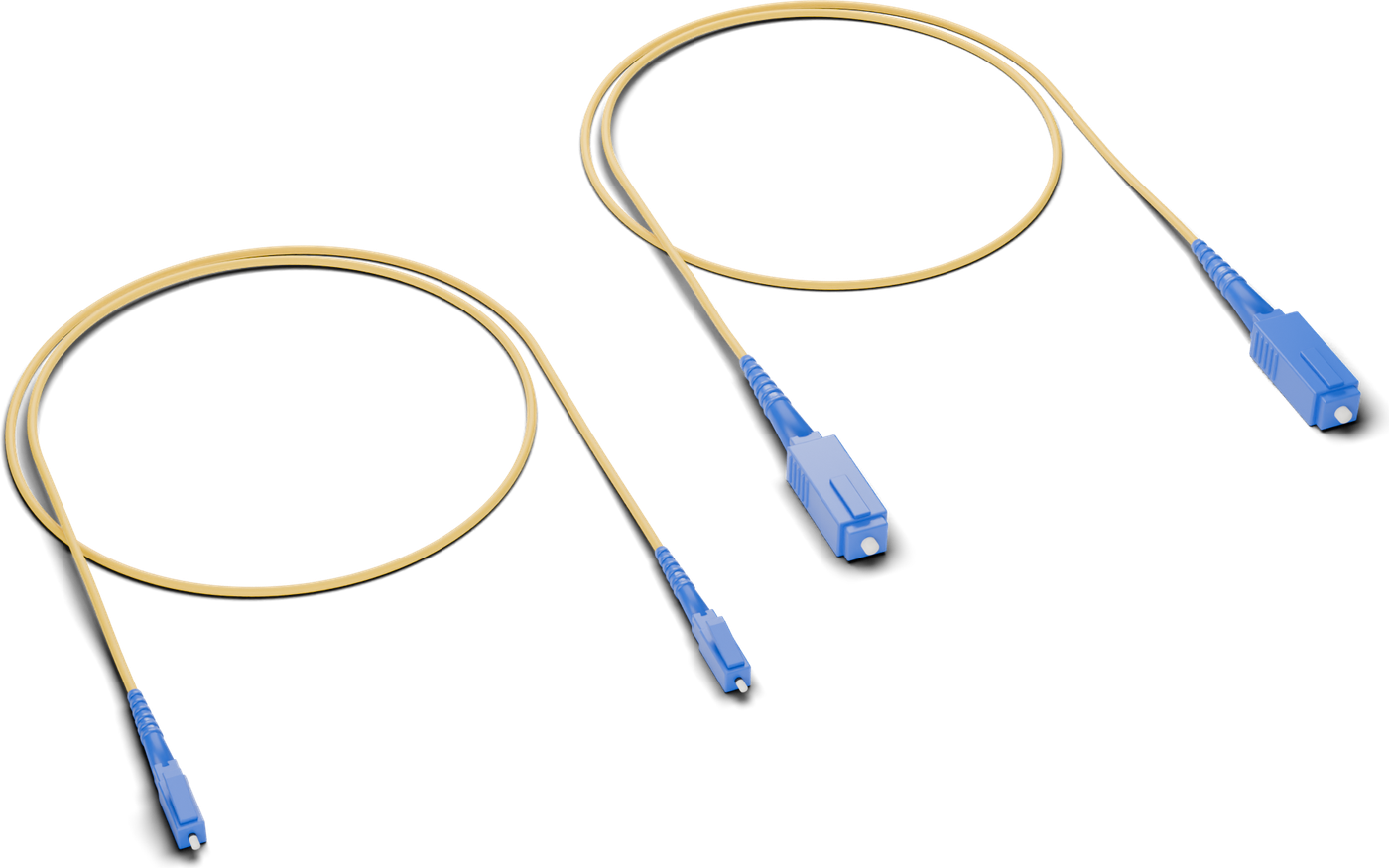

Simplex jumpers.

Connector Pairs

Ten Duplex Combinations

Part Number	End A	End B
`DX-LCLC-NNM`	LC/UPC	LC/UPC
`DX-LALA-NNM`	LC/APC	LC/APC
`DX-LCLA-NNM`	LC/UPC	LC/APC
`DX-SCSC-NNM`	SC/UPC	SC/UPC
`DX-SASA-NNM`	SC/APC	SC/APC
`DX-SCSA-NNM`	SC/UPC	SC/APC
`DX-LCSC-NNM`	LC/UPC	SC/UPC
`DX-LCSA-NNM`	LC/UPC	SC/APC
`DX-LASA-NNM`	LC/APC	SC/APC
`DX-LASC-NNM`	LC/APC	SC/UPC

Common Lengths, M (NN)

0102030405060708091012151720253035455075100

Specifications

Fiber	Corning SMF-28 Ultra singlemode fiber (G.652.D and G.657.A1 compliant, bend-insensitive)
Construction	Duplex; simplex on request
Jacket	1.6 mm
Connectors	LC/UPC, LC/APC, SC/UPC, SC/APC
Insertion Loss	0.20 dB max, 0.15 dB typical
Return Loss	UPC 55 dB min; APC 65 dB min
Testing	100% end-face cleanliness, geometry
Lengths	Any length from 1 to 100 m
On Request	Simplex, multimode (OM3)
Documentation	Test data and certificate of conformance available on request.

Fiber Jumpers, Simplex & Duplex: Part Number Examples

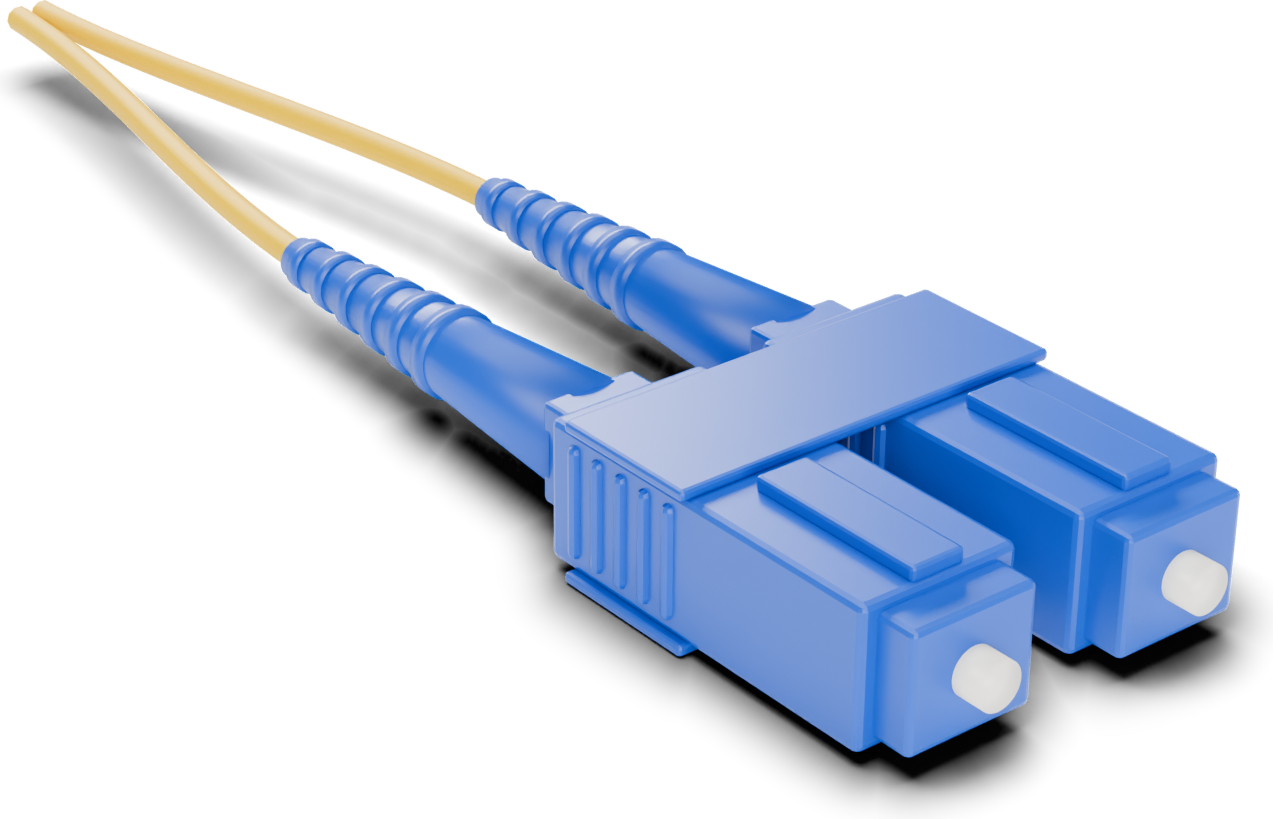

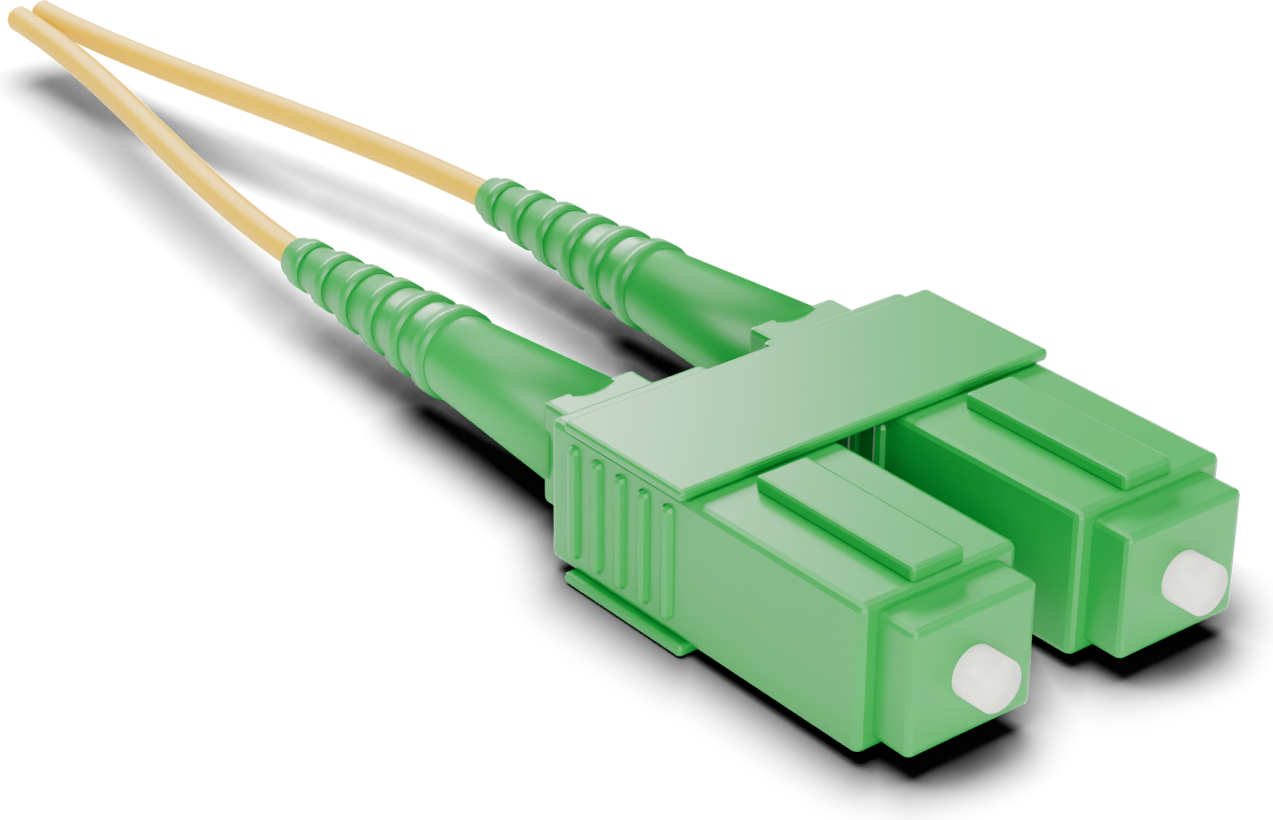

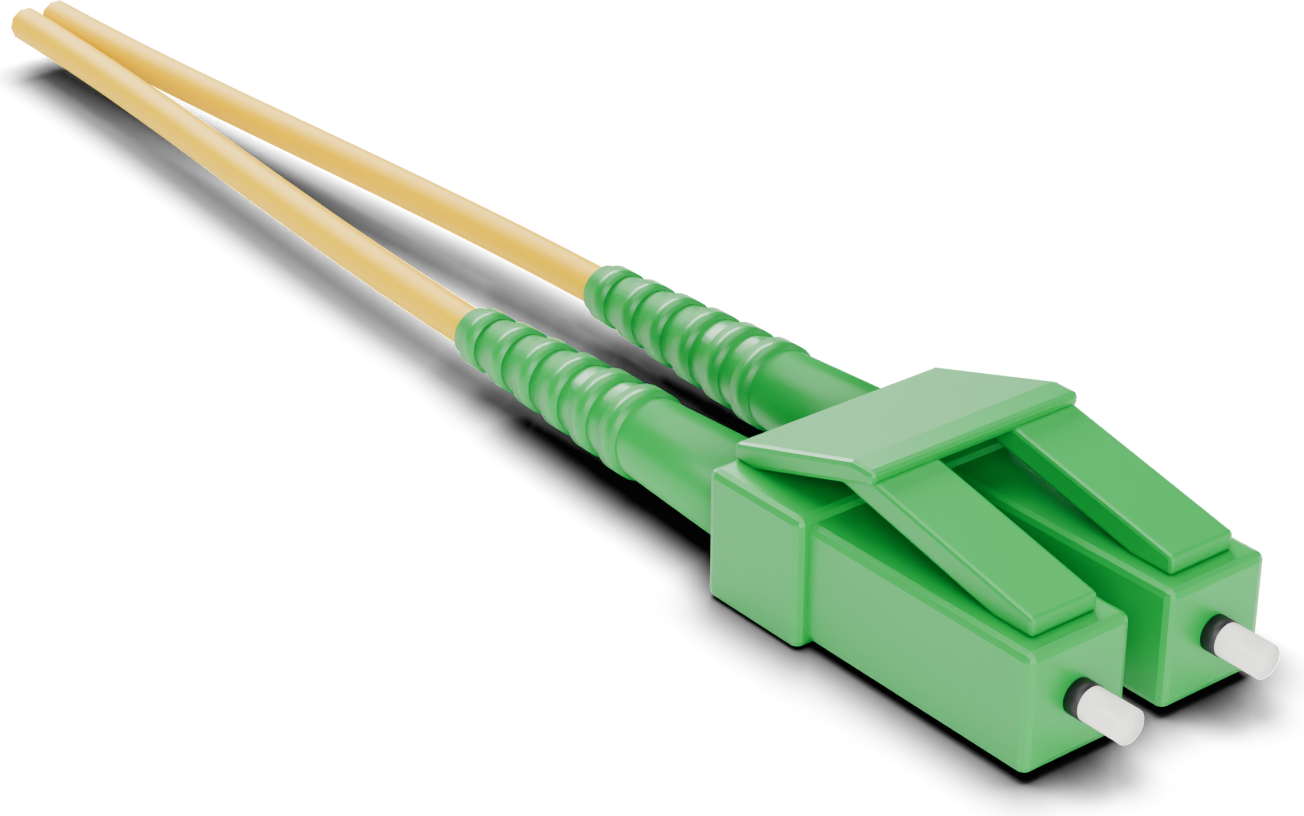

Connector colors: blue UPC, green APC.

Ordering

Part Number Examples

Part Number	Description
`DX-LCLC-03M`	Duplex, LC/UPC to LC/UPC, SMF-28 Ultra, 1.6 mm, 3 m	Quote
`DX-LCSA-10M`	Duplex, LC/UPC to SC/APC, SMF-28 Ultra, 1.6 mm, 10 m	Quote
`DX-SASA-100M`	Duplex, SC/APC to SC/APC, SMF-28 Ultra, 1.6 mm, 100 m	Quote
`SX-SCSC-05M`	Simplex, SC/UPC to SC/UPC, singlemode, 5 m	Quote

Part number format: [SX/DX]-[A][B]-[NN]M. DX = duplex, SX = simplex. LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC. NN = meters (01 to 99, or 100). Singlemode is standard.
