Name: HD3U Rack Mount Enclosure
Brand: One Optics
SKU: HD3U-R-LC-288

HD3U Rack Mount Enclosure

Modular 3U · 12 HD positions · LC up to 432F · SC up to 144F · stacks to 6U and 9U

A modular 3U rack mount enclosure built around 12 HD adaptor positions. Build it with ribbon pigtails and four splice trays for up to 288 LC fibers, or load OOFC splice cassettes for up to 432 LC fibers. Two or three units join on 6U or 9U stacking brackets.

288FLC ribbon + 4 trays

432FLC splice cassettes

1,296F9U stack, cassettes

Build your part numberHD3U / HD6U / HD9U-[style]-[connector]-[count]

Size

Fiber style

Connector

Fiber count

Quote This Part

Singlemode is standard; multimode available on request. Choose every module in the configurator →

One Chassis. Twelve HD Adaptor Positions.

Pick the connector, polish, fiber style and fiber type, and the HD3U is built and loaded to suit. Ribbon pigtails on Corning fiber cover high-count LC; loose tube pigtails cover lower counts; OOFC cassettes put the splice inside each module.

12 HD adaptor positions in 3U

Ribbon pigtails + 4 black metallic splice trays: up to 288F LC

OOFC-36 splice cassettes: up to 432F LC (HD3U-C-LC-432); OOFC-24: 288F LC (HD3U-C-LC-288)

Loose tube pigtails: up to 144F on a single HD3U; not offered on stacks.

Removable magnetic front door with spring latch; removable front and rear lids; sliding tray

Rear cable entry with strain relief, plus a 1.5 in pass-through knockout

6U (HD6U) and 9U (HD9U) stacking brackets

Made in USA; IEC and TIA/EIA compliant; RoHS and REACH

Two Ways to Build It, or Order It Unloaded

HD3U-R-…

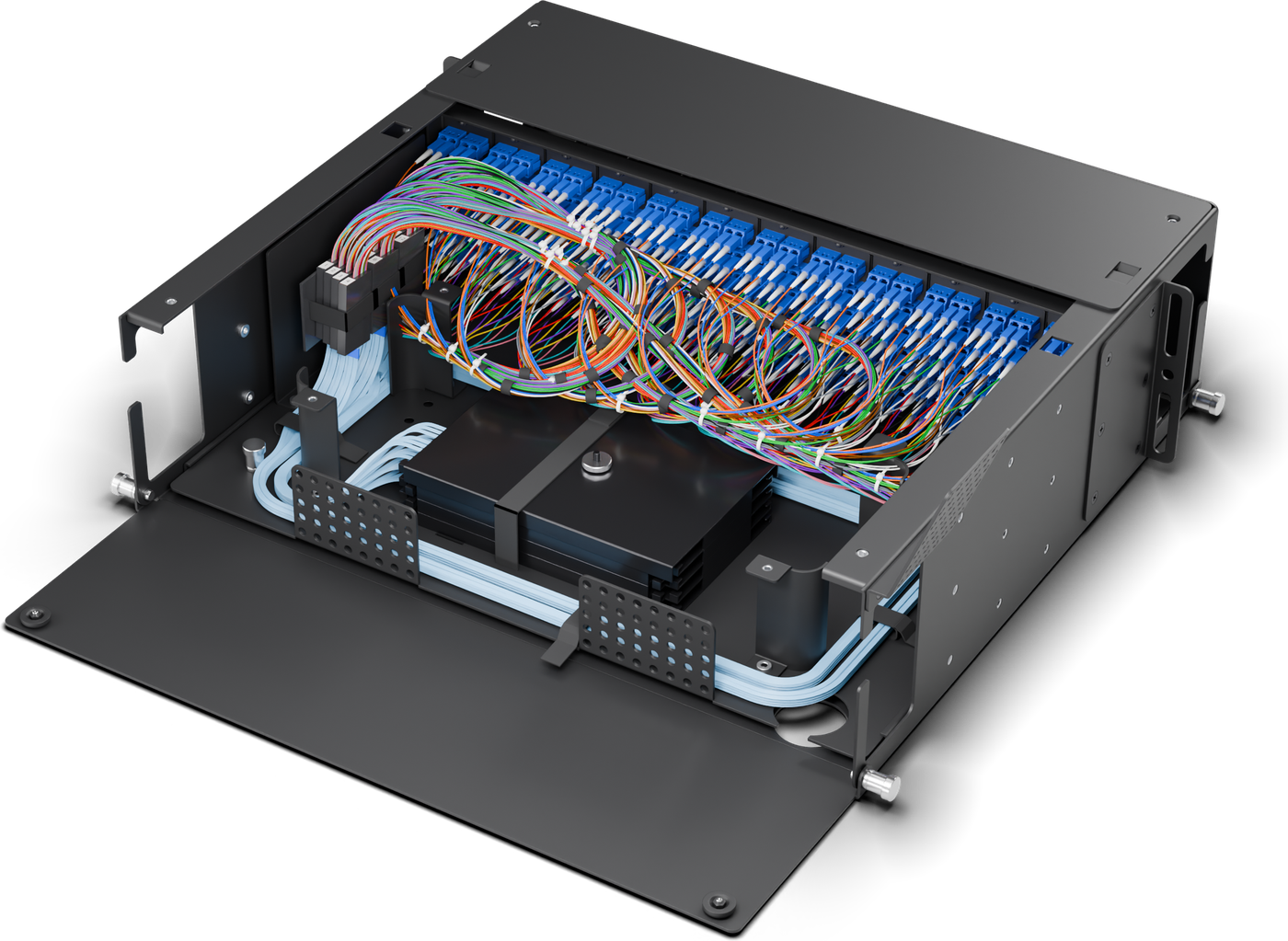

288F LC · Ribbon Pigtails + 4 Splice Trays

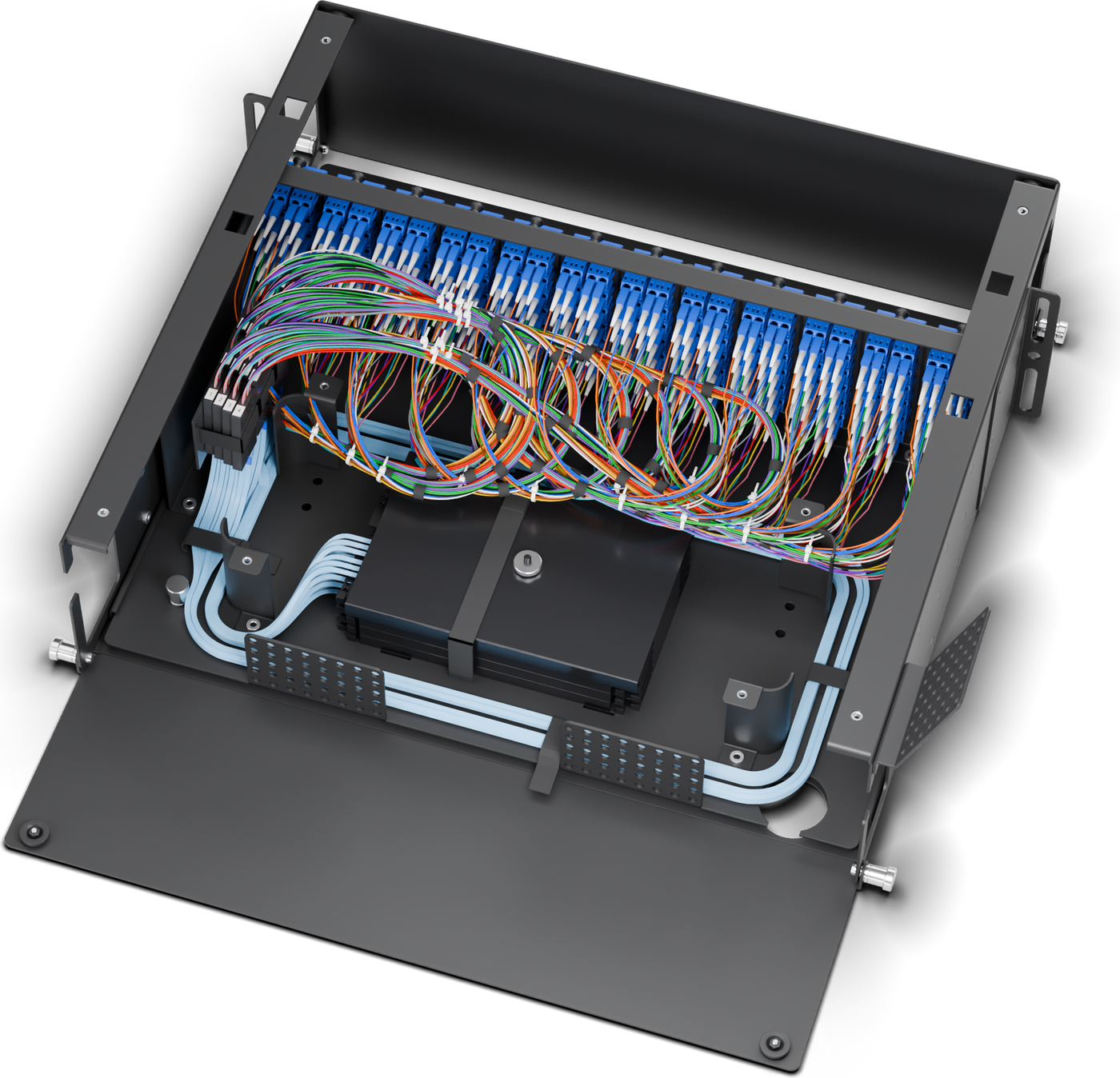

Ribbon LC build, 288F: 12 HD 24-port adaptor plates, ribbon singlemode pigtails, and black metallic splice trays.

HD3U-C-…

432F LC · OOFC Splice Cassettes

Twelve 36-port splice cassettes take the adaptor plate positions. Splicing and slack storage are inside each cassette, for 432 LC fibers in 3U.

Option A · HD3U-A-…

Adaptors Only

The chassis ships with HD adaptor plates loaded in the connector and polish you choose, with no pigtails and no splice trays. Example: HD3U-A-LC-288.

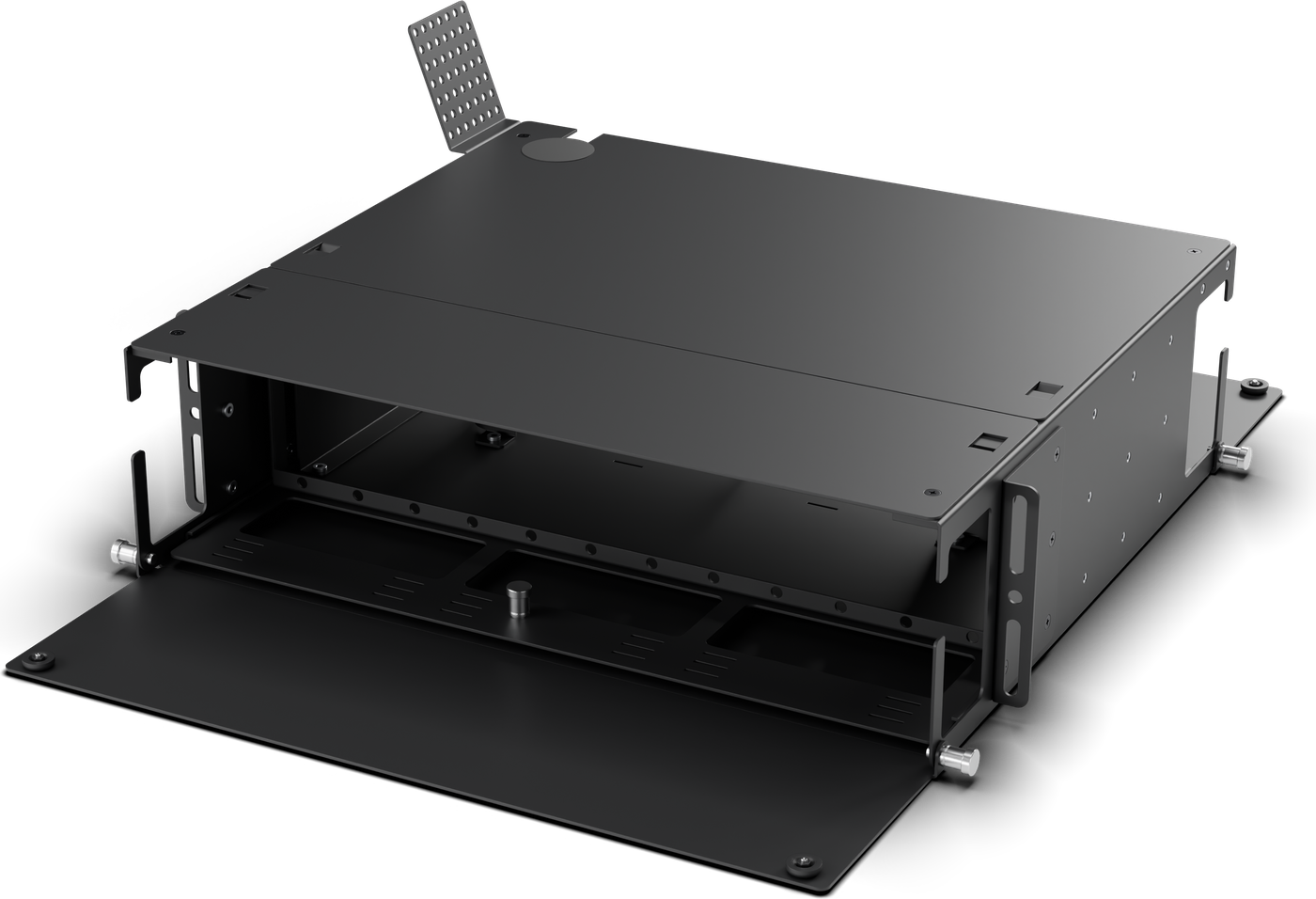

Option E · HD3U-E

Empty

The bare chassis, with no adaptor plates, pigtails or splice trays. All 12 HD adaptor positions are open for the plates or splice cassettes you add. Order as HD3U-E.

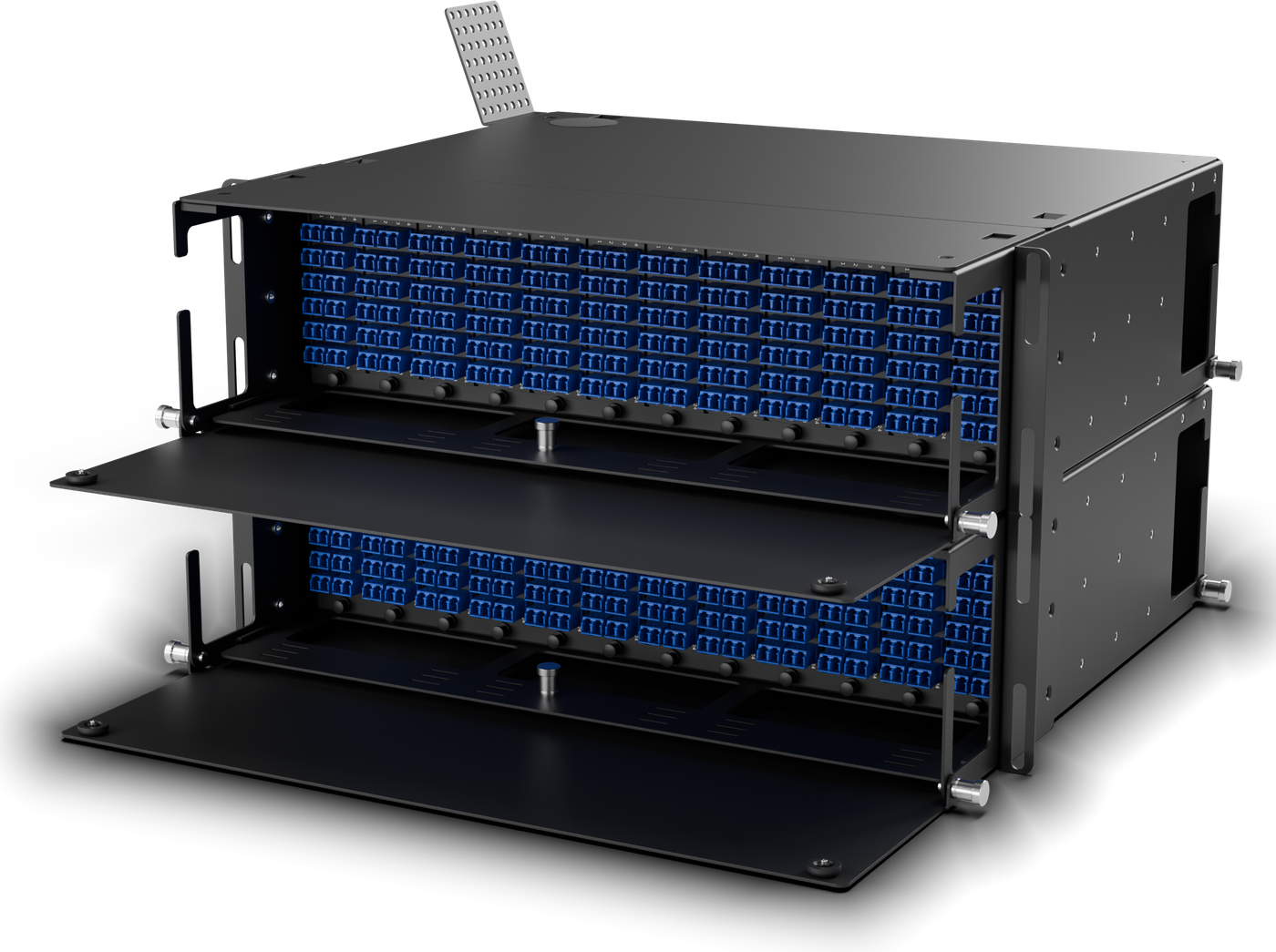

HD6U and HD9U Stacked Configurations

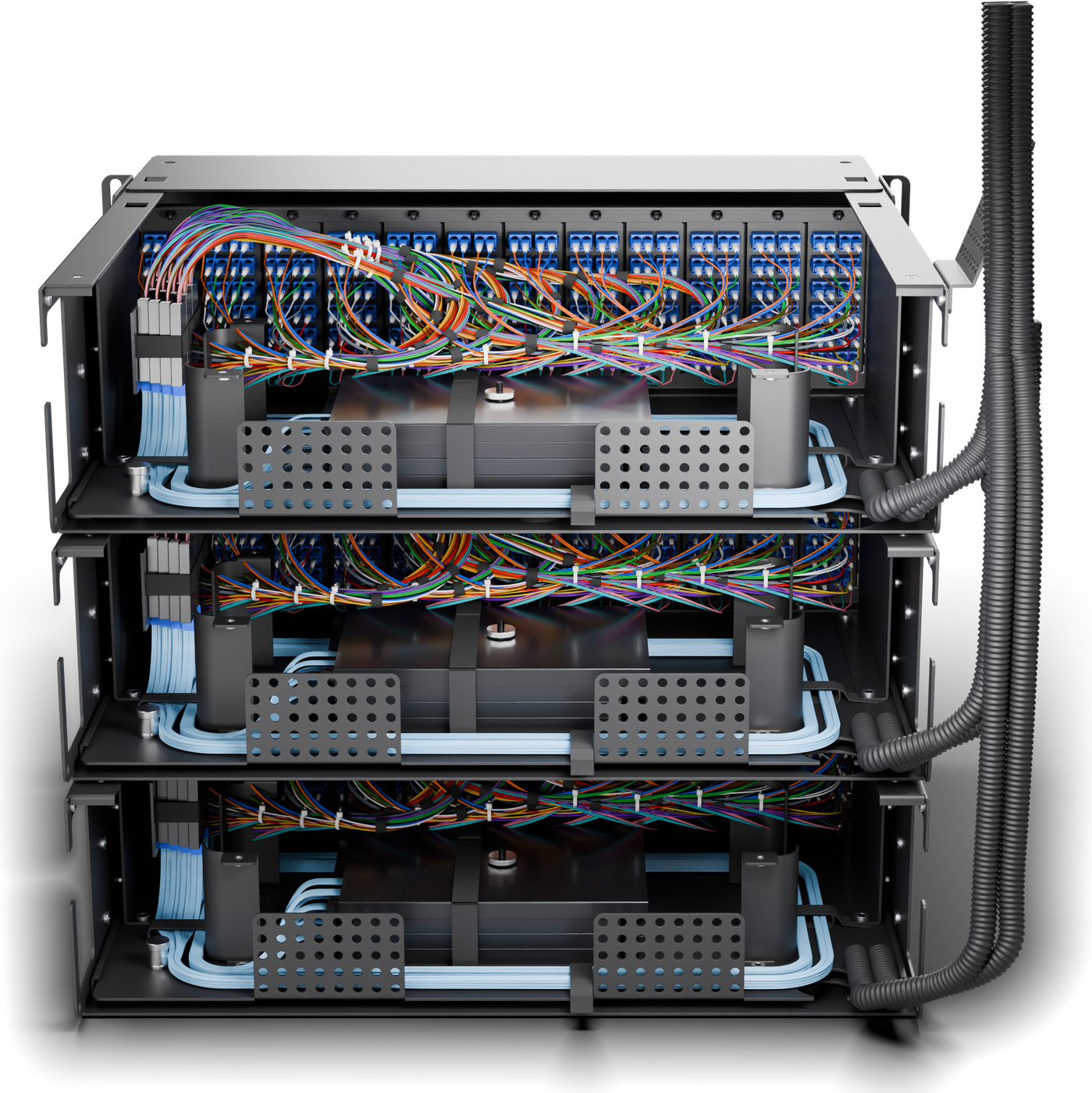

An HD6U is two HD3U units on a pair of 6U stacking brackets; an HD9U is three HD3U units on a pair of 9U stacking brackets. Codes follow the HD3U key with the HD6U or HD9U prefix. Stacks are built with ribbon pigtails, splice cassettes, adaptors only or empty; loose tube is not offered on stacks.

Maximum Fibers

3U · HD3U

6U · HD6U

9U · HD9U

LC, ribbon pigtails + 4 splice trays per unit

288

576

864

LC, OOFC-36 splice cassettes

432

864

1,296

144

288

432

Loose tube pigtails

144

Not offered on stacks

6U and 9U figures are "up to" totals: 2x and 3x the single-unit maximum. Every unit keeps its own doors, lids and sliding tray.

Rear: lids and rear panels off; each HD3U’s ribbon pigtails drop through the aligned 1.5 in pass-through knockouts into its own HD3US tray.

Remote Splicing

Patch in the HD3U. Splice in the HD3US.

To keep splicing out of the patch panel, order the HD3U as an NT build (ribbon pigtails installed, no splice trays; e.g. HD3U-R-LC-288-NT, HD9U-R-LC-864-NT), or adaptors only, and splice in a companion HD3US splice-only enclosure. Each HD3U has a 1.5 in [38.1 mm] pass-through knockout at the rear, aligned through the base, sliding tray and rear lid, so ribbon pigtails drop straight down to splice remotely.

Remote-Splice Stacks: HD21U and HD42U

A remote-splice stack ships as one part number: HD3U panels with ribbon singlemode pigtails and no splice trays (-NT builds), stacked over HD3US splice-only enclosures, one HD3US for every six HD3U. Pigtails drop through the 1.5 in [38.1 mm] pass-through knockouts into the HD3US trays, one 288F tray per HD3U.

Part Number	HD3U	HD3US	Trays	Rack	Fibers
`HD21U-R-LC-1728`	Remote splice stack, 1,728F: 6x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	1	6	21U	1,728
`HD42U-R-LC-3456`	Remote splice stack, 3,456F: 12x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	2	12	42U	3,456
`HD21U-R-SC-864`	Remote splice stack, 864F: 6x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	1	6	21U	864
`HD42U-R-SC-1728`	Remote splice stack, 1,728F: 12x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	2	12	42U	1,728

HD21U = 21U: 6x HD3U over 1x HD3US. HD42U = 42U: 12x HD3U over 2x HD3US. LC = LC/UPC · LA = LC/APC · SC = SC/UPC · SA = SC/APC. APC: replace LC with LA or SC with SA in the same code, e.g. HD21U-R-LA-1728 or HD42U-R-SA-1728.

One HD3US serves up to six 288F HD3U panels: 6 trays x 288F = 1,728F in 3U
HD3U stays a clean patch panel; every splice lives in the HD3US
NT = pigtails installed, no splice trays, for splicing in a separate HD3US
Each tray slides out on its own rails, so finished splices are not disturbed

Front: HD3U doors closed; HD3US door open with one tray slid out.

View the HD3US

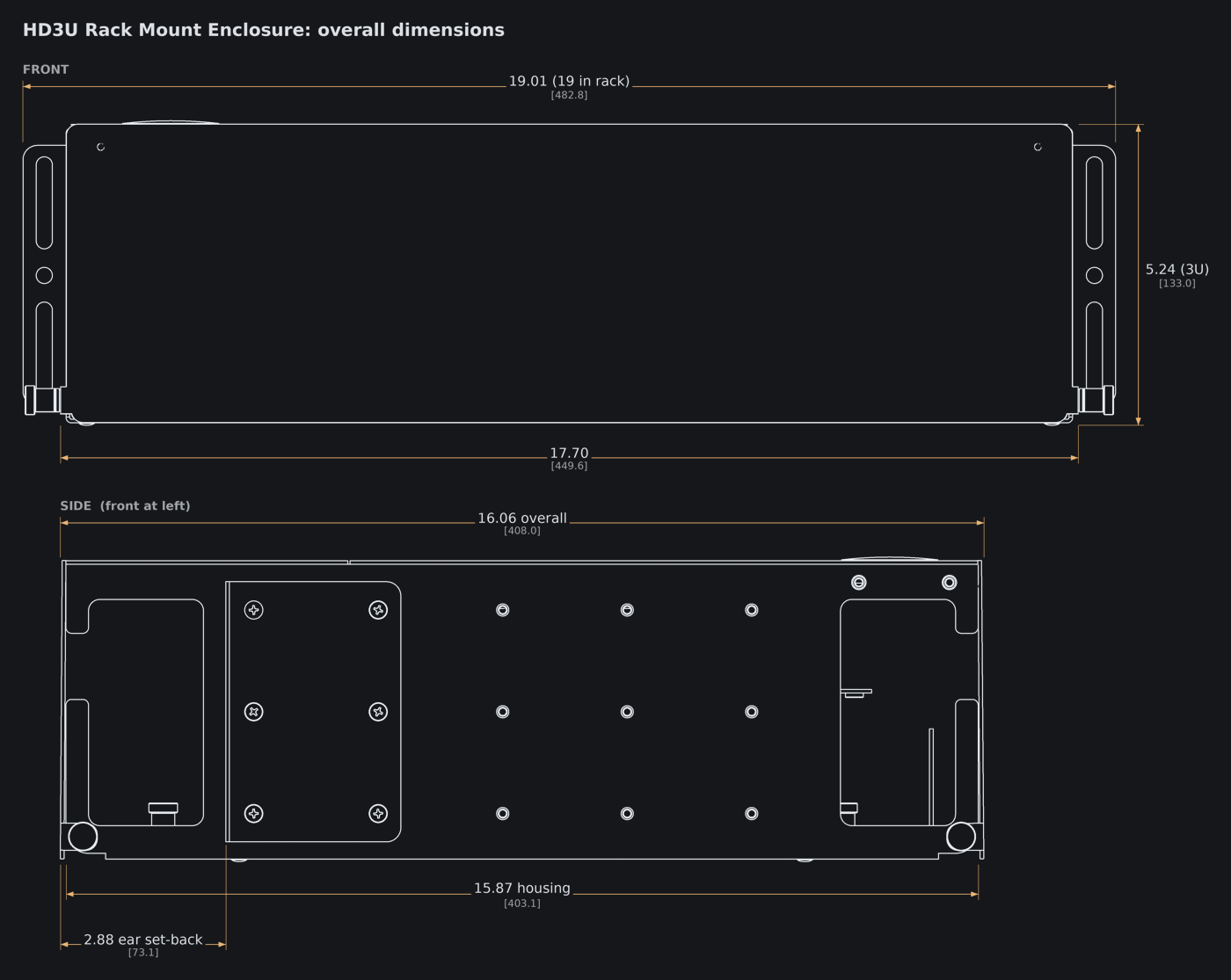

Specifications

Rack Units

3U, 19 in rack mount

Dimensions (H x W x D)

5.24 x 17.70 x 16.06 in [133.0 x 449.6 x 408.0 mm]

Width with Rack Ears

19.01 in [482.8 mm]

Weight

Approx. 23 lb [10.4 kg], empty

Material

16 ga galvanneal steel, black powder coat

Origin

Made in USA

Slot Type

12x HD adaptor positions

Adaptor Types

LC duplex and SC duplex adaptors, plus LC quad on patch-only or HD3US builds

Capacity

LC: 288F (ribbon pigtails, 4 splice trays included) or 432F (splice cassettes); SC: 144F; loose tube: 144F

Fiber Access

Front and rear doors, removable lids, sliding tray

Cable Entry

Rear, with strain relief; 1.5 in [38.1 mm] pass-through knockout

Stacking

6U (2 units) and 9U (3 units) brackets

Pigtails

Corning fiber, 3 m overall: 18 in [457 mm] color-coded 900 µm fan-out, then ribbon

Standards

IEC and TIA/EIA compliant; RoHS and REACH compliant

In the Box

Rack bracket kit, strain relief bracket, laser warning sticker, rack screws (4), zip ties, Velcro, port ID chart

Compliance

Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request.

Documentation

Test data and certificate of conformance available on request.

SM LC/SC

MM LC/SC

Insertion loss, max / typical

0.20 / 0.15 dB

Return loss, UPC

55 dB min

30 dB min

Return loss, APC

65 dB min

n/a

Ordering

Standard Part Numbers

Part Number	Description
`HD3U-L-LC-72`	Loose tube, 72 ports LC/UPC (6x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays	Quote
`HD3U-L-LC-144`	Loose tube, 144 ports LC/UPC (12x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays	Quote
`HD3U-L-SC-72`	Loose tube, 72 ports SC/UPC (6x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays	Quote
`HD3U-L-SC-144`	Loose tube, 144 ports SC/UPC (12x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays	Quote
`HD3U-R-LC-144`	144 ports LC/UPC (12 plates x 12), ribbon singlemode pigtails, 4 splice trays included	Quote
`HD3U-R-LC-288`	288 ports LC/UPC, ribbon singlemode pigtails, 4 splice trays included	Quote
`HD3U-R-LA-288`	288 ports LC/APC, ribbon singlemode pigtails, 4 splice trays included	Quote
`HD3U-R-LC-288-NT`	NT: 288 ports LC/UPC, ribbon pigtails installed, no splice trays; splice in a separate HD3US	Quote
`HD3U-C-LC-432`	432 ports LC/UPC, 12x 36-port splice cassettes (configure to order)	Quote
`HD3U-C-LC-288`	288 ports LC/UPC, 12x 24-port splice cassettes (configure to order)	Quote
`HD3U-A-LC-288`	Adaptors only: 288 ports LC/UPC on 12 HD 24-port adaptor plates; no pigtails, no splice trays	Quote
`HD3U-E`	Empty chassis: no adaptor plates, pigtails or splice trays	Quote
`HD6U-R-LC-576`	576 ports LC/UPC (24 plates x 24), ribbon pigtails, splice trays	Quote
`HD6U-R-LC-576-NT`	576 ports LC/UPC, ribbon pigtails installed, no splice trays (NT): splice in an HD3US	Quote
`HD6U-R-LC-432`	432 ports LC/UPC (18 plates x 24), ribbon pigtails, splice trays	Quote
`HD6U-R-SA-288`	288 ports SC/APC (24 plates x 12), ribbon pigtails, splice trays	Quote
`HD6U-A-SA-288`	Adaptors only: 288 ports SC/APC; no pigtails, no splice trays	Quote
`HD6U-C-LC-864`	864 ports LC/UPC, 24x 36-port splice cassettes (configure to order)	Quote
`HD6U-C-LC-576`	576 ports LC/UPC, 24x 24-port splice cassettes (configure to order)	Quote
`HD6U-E`	Two empty chassis on 6U stacking brackets	Quote
`HD9U-R-LC-864`	864 ports LC/UPC (36 plates x 24), ribbon pigtails, splice trays	Quote
`HD9U-R-LC-864-NT`	864 ports LC/UPC, ribbon pigtails installed, no splice trays (NT): splice in an HD3US	Quote
`HD9U-R-SC-432`	432 ports SC/UPC (36 plates x 12), ribbon pigtails, splice trays	Quote
`HD9U-R-SA-432`	432 ports SC/APC (36 plates x 12), ribbon pigtails, splice trays	Quote
`HD9U-A-SC-432`	Adaptors only: 432 ports SC/UPC; no pigtails, no splice trays	Quote
`HD9U-C-LC-1296`	1,296 ports LC/UPC, 36x 36-port splice cassettes (configure to order)	Quote
`HD9U-C-LC-864`	864 ports LC/UPC, 36x 24-port splice cassettes (configure to order)	Quote
`HD9U-E`	Three empty chassis on 9U stacking brackets	Quote
`HD21U-R-LC-1728`	Remote splice stack, 1,728F: 6x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	Quote
`HD42U-R-LC-3456`	Remote splice stack, 3,456F: 12x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	Quote
`HD21U-R-SC-864`	Remote splice stack, 864F: 6x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	Quote
`HD42U-R-SC-1728`	Remote splice stack, 1,728F: 12x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	Quote
`Custom`	Other connector, polish, fiber type and count combinations within capacity, configured to order	Quote

Part number format: HD3U-[L/R/C/A]-[LC/LA/SC/SA]-[count] or HD3U-E; stacks use the HD6U or HD9U prefix. C = OOFC splice cassettes (LC/LA only). Suffix -NT (ribbon builds) = pigtails installed, no splice trays, for splicing in a separate HD3US. Fiber style: L = 900 µm loose tube pigtails, R = ribbon pigtails, C = OOFC splice cassettes (LC/LA only), A = adaptor plates only, no pigtails or trays; E = empty chassis, no suffix. Connector/polish: LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC. Trailing number = fiber count (port count on A builds). Singlemode is standard; multimode available on request.
