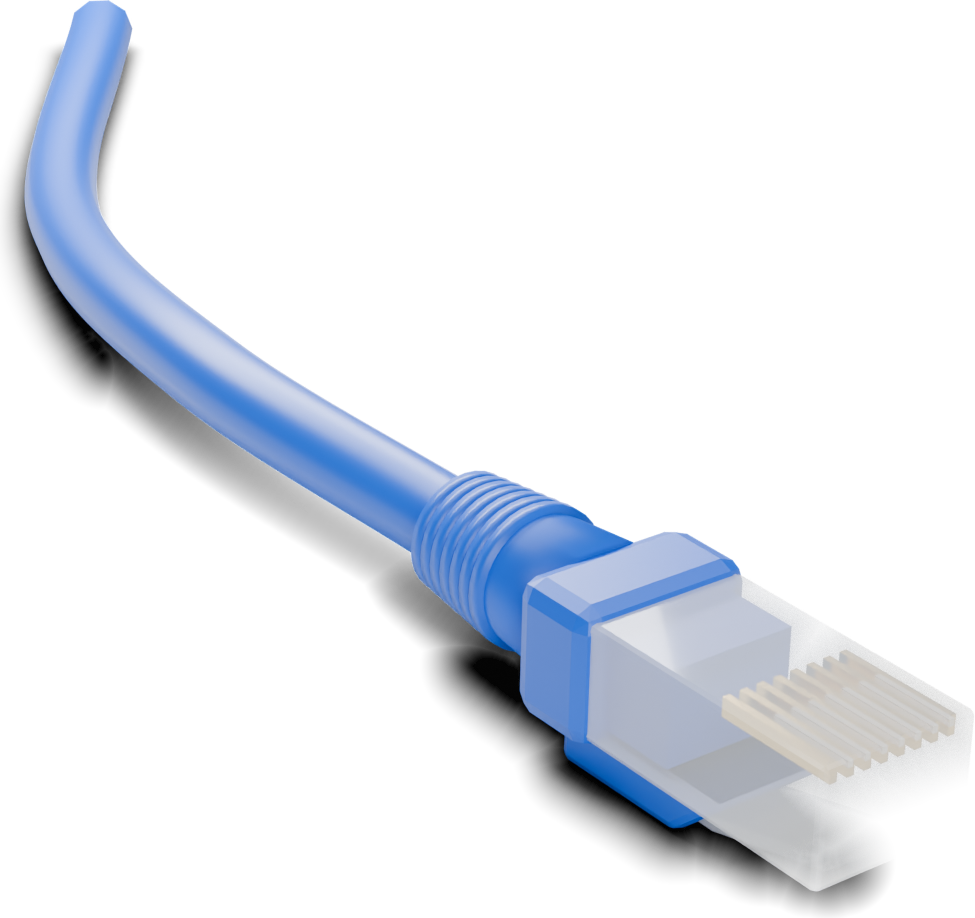

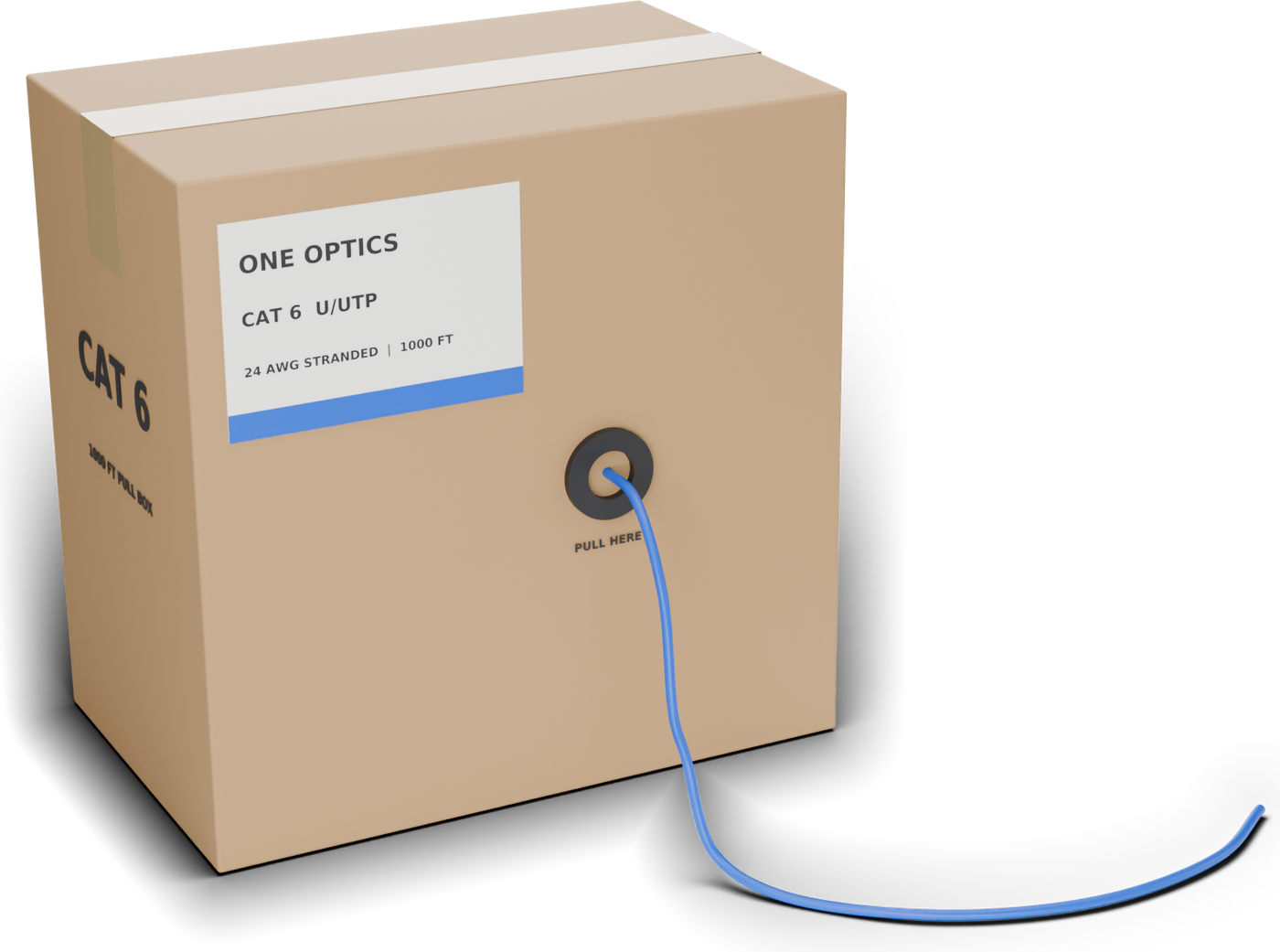

Unshielded twisted-pair Cat 6 patch cords with molded snagless boots, in standard 24 AWG or slim 28 AWG for dense panels, in nine colors. For your own terminations, bulk Cat 6 ships in 1,000 ft pull boxes. Both jumper gauges plug into the HDP-RJ45-6 FHD adaptor plate, which holds six RJ45 ports, so copper and fiber share the same enclosure.
Two jumper gauges: standard 24 AWG for general patching, and slim 28 AWG where airflow and cable bulk matter. 28 AWG cords carry more insertion loss, so keep them short in a channel; we offer them up to 15 ft.

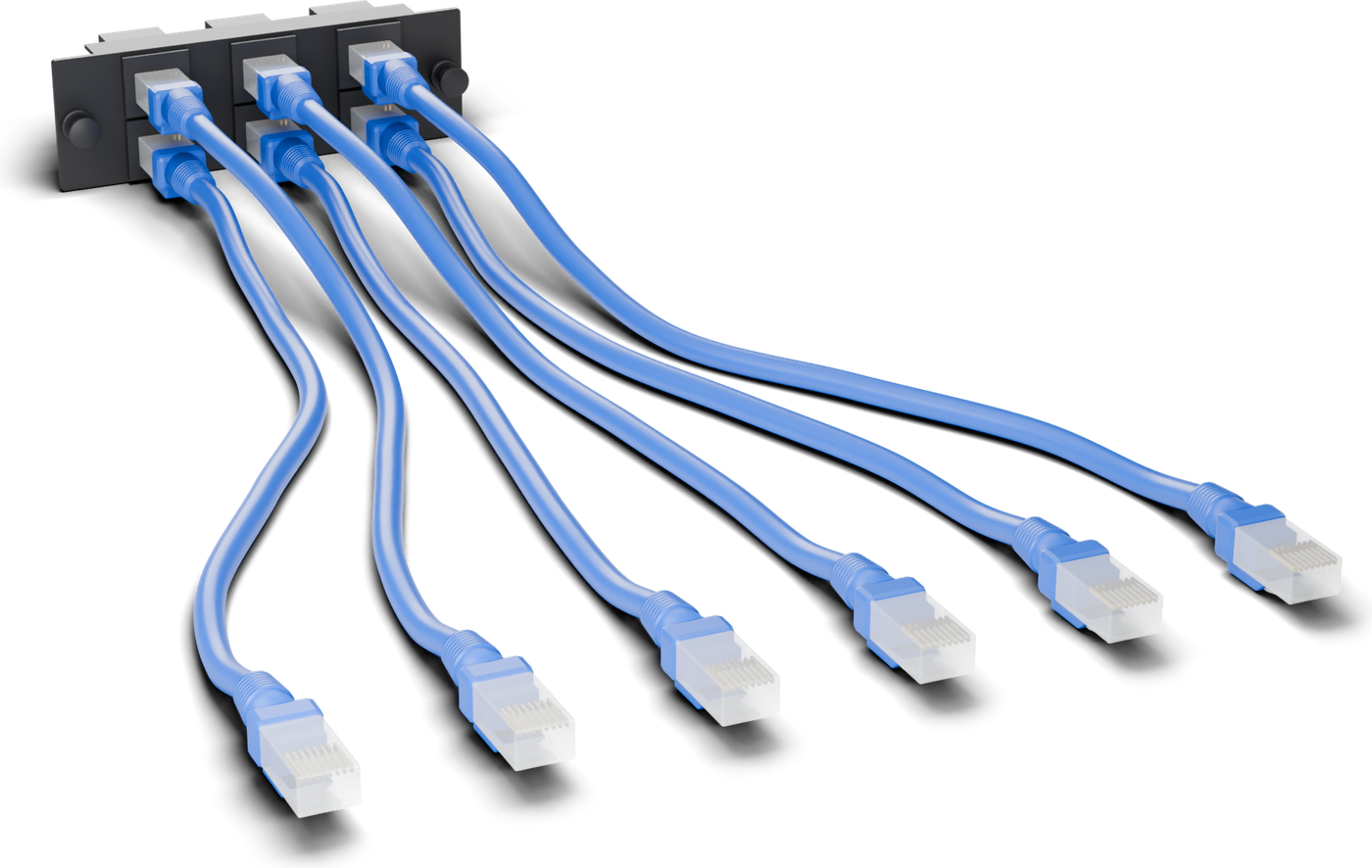

HDP-RJ45-6 plate with Cat 6 jumpers.
| Category | Category 6 (250 MHz), ANSI/TIA-568.2-D |
|---|---|
| Construction | U/UTP, 4 twisted pairs, stranded bare copper |
| Conductor | 24 AWG stranded or 28 AWG stranded (slim) |
| Jacket OD (Nominal) | Jumpers: 0.24 in [6.0 mm] (24 AWG); 0.15 in [3.8 mm] (28 AWG). Bulk 24 AWG pull box: 0.21 in [5.4 mm] |
| Jacket | PVC, in the color of the boot |
| Connectors | RJ45 (8P8C) to RJ45, gold-plated contacts, molded snagless boots |
| Standard Lengths | 24 AWG: 1–25 ft (12 lengths); 28 AWG: 1–15 ft (7 lengths) |
| Colors | Blue, black, white, gray, red, yellow, green, orange, purple |
| Operating Temperature | 14 to 140 °F |
| Listings | 24 AWG: UL listed, ETL verified |
| Pull Boxes | 1,000 ft, front payout; 24/28 AWG stranded CM, 23 AWG solid CMP or CMR; blue, white, gray; 25 lbf max pulling tension |
| Documentation | Test data and certificate of conformance available on request. |
| Cable | Blue | White | Gray |
|---|---|---|---|
| 24 AWG stranded, CM | C624T-U-M-BL-PB | C624T-U-M-WH-PB | C624T-U-M-GY-PB |
| 28 AWG stranded, CM | C628T-U-M-BL-PB | C628T-U-M-WH-PB | C628T-U-M-GY-PB |
| 23 AWG solid, CMP | C623S-U-P-BL-PB | C623S-U-P-WH-PB | C623S-U-P-GY-PB |
| 23 AWG solid, CMR | C623S-U-R-BL-PB | C623S-U-R-WH-PB | C623S-U-R-GY-PB |
Installed bend radius at least 4x the cable OD. Terminate stranded cable with RJ45 plugs made for stranded conductors.
| Part Number | Description | |
|---|---|---|
C624-SB-BL-003 | 24 AWG, snagless, blue, 3 ft | Quote |
C624-SB-RD-025 | 24 AWG, snagless, red, 25 ft | Quote |
C628-SB-WH-007 | 28 AWG slim, snagless, white, 7 ft | Quote |
C628-SB-BK-015 | 28 AWG slim, snagless, black, 15 ft | Quote |
C624T-U-M-BL-PB | 24 AWG stranded, CM, blue, 1,000 ft pull box | Quote |
C623S-U-P-WH-PB | 23 AWG solid, plenum (CMP), white, 1,000 ft pull box | Quote |
C623S-U-R-GY-PB | 23 AWG solid, riser (CMR), gray, 1,000 ft pull box | Quote |
C6 = Category 6; AWG 24, 28 (slim) or 23 (bulk only); SB = snagless boot; CC = color (BL BK WH GY RD YL GN OG PR); LLL = length in feet; S = solid, T = stranded; U = U/UTP; P = CMP, R = CMR, M = CM; PB = 1,000 ft pull box.
3-page PDF: jumper and pull box specifications, colors, lengths, panel compatibility and part numbers.
